C-Frame vs. H-Frame Presses: Which is Right for Your Manufacturing Needs?

When selecting a mechanical press for your manufacturing operations, the press frame plays a crucial role in ensuring structural integrity. The press frame is responsible for absorbing the forces generated during the pressing process, which makes it a key component for your production efficiency and precision. There are two main types of press frames: the C-frame press and the H-frame press. Each design comes with distinct advantages and limitations, which makes it essential to understand their differences for optimal decision-making. In this article, we’ll compare both types, highlighting their benefits, disadvantages, and offering guidance on selecting the best press for your specific requirements.

1. C-Frame Mechanical Presses: The Ideal Choice for Small-Scale Production

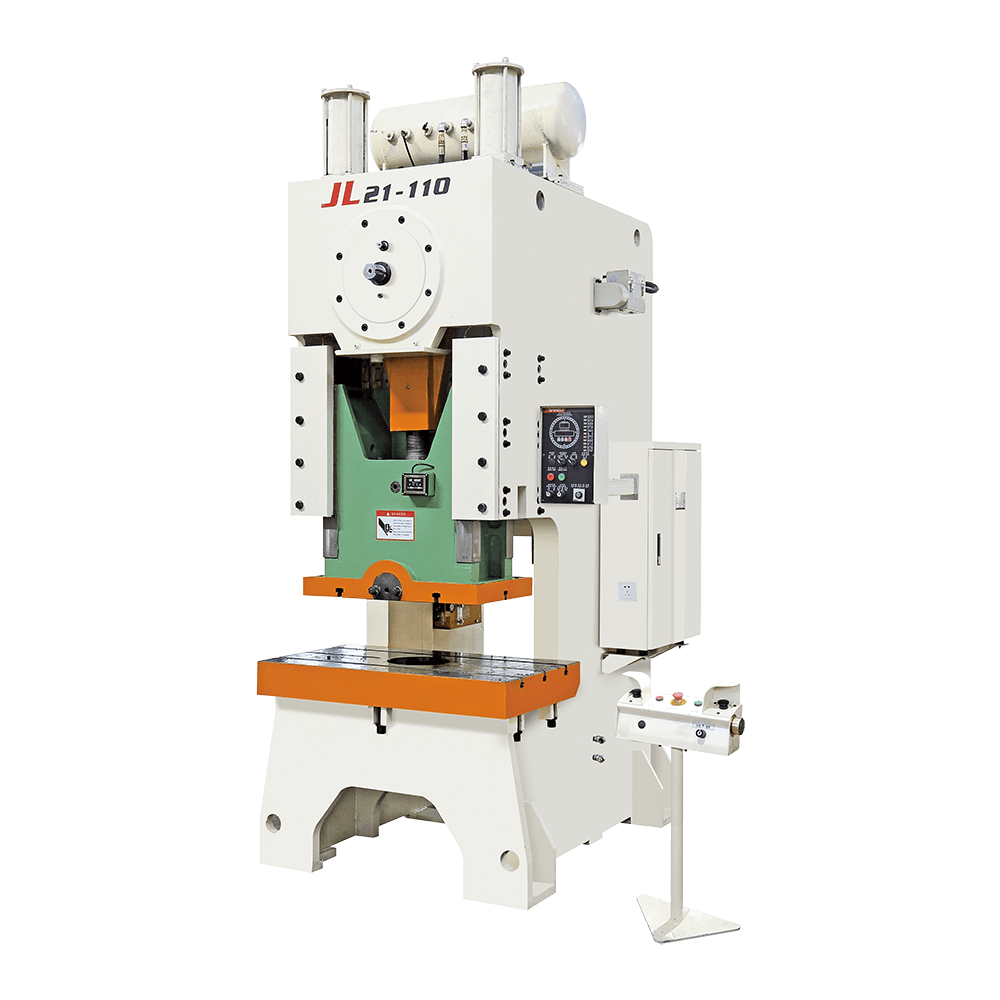

A C-frame mechanical press, also known as a gap-frame press, features a vertical column, a horizontal ram, and a crossbeam at the top, forming the characteristic "C" shape. This compact design is widely used in industries requiring precision and efficiency, making it an ideal option for small to medium-scale production and high-precision press for automotive parts.

Advantages of C-Frame Mechanical Presses:

• Easy Mold Change: The open-front design of C-frame presses makes mold changes faster and more convenient, significantly improving productivity. Ideal for operations that require frequent tool changes.

• Compact Design: Due to their small footprint, C-frame presses are perfect for businesses with limited floor space. Their open-frame design also simplifies maintenance and repair.

• High Precision: Known for their accuracy, C-frame presses offer stable performance with minimal deflection, which is especially important in precision manufacturing and small batch runs.

• Cost-Effective: C-frame presses are budget-friendly due to their simple design and lower manufacturing costs. This makes them an excellent choice for cost-effective press for small-scale production.

• Speed and Efficiency: C-frame presses are ideal for high-speed operations, perfect for industries needing quick turnaround times and medium load production.




Introducing YNGLI MC1 Series C-Frame Press

For manufacturers seeking high accuracy and performance, the YNGLI MC1 Series C-Frame Press is a great option. This model provides:

• High Rigidity and Precision: Minimizes deformation under load for stable performance.

• User-Friendly Operation: Easy mold changes with its open-front design, reducing downtime.

• Enhanced Safety Features: Equipped with modern safety mechanisms for operator protection.

• Energy Efficiency: Reduces energy consumption while maintaining optimal performance. For more details, visit: YNGLI MC1 Series Press.




Disadvantages of C-Frame Mechanical Presses:

• Are C-frame presses suitable for heavy-duty applications?: Generally, C-frame presses are not designed for heavy-duty tasks. They have lower tonnage capacities than H-frame presses, which limits their ability to handle large dies or high-force operations.

• Lower Rigidity Under Extreme Pressure: While excellent for medium-duty operations, the C-frame design may experience slight flexing under extreme pressure, which can impact accuracy and the longevity of the press in high-load tasks.




When to Recommend C-Frame Mechanical Presses:

The C-frame press is ideal for businesses looking for a cost-effective press for small-scale production or a high-precision press for automotive parts. It’s best suited for operations that need frequent mold changes, high-speed production, and small to medium-sized batch runs.

2. H-Frame Mechanical Presses: The Best Choice for Heavy-Duty Operations

The H-frame mechanical press features a robust, symmetrical H-shaped structure that provides superior rigidity and strength. This design is perfect for heavy-duty applications that require high tonnage and precise performance, such as in large-scale metal stamping or forging operations in industries like automotive and aerospace.

Advantages of H-Frame Mechanical Presses:

• Superior Rigidity: The H-frame design ensures maximum strength and stability, providing consistent precision even in high-pressure operations.

• High Tonnage Capacity: H-frame presses can handle larger tonnages, making them ideal for large-scale production and high-tonnage operations in industries like automotive manufacturing.

• Long-Term Durability: Built to endure continuous, high-load tasks, H-frame presses offer exceptional durability, reducing the need for frequent repairs and increasing equipment lifespan.

• Precision in High-Load Operations: Perfect for heavy-duty precision tasks where consistent performance is crucial.




Introducing YANGLI MG2 Series H-Frame Press

For those requiring high strength and performance, the YANGLI MG2 Series H-Frame Press offers the ideal solution. Features include:

• Exceptional Strength and Stability: Its gantry-type structure ensures superior support for high-load tasks.

• Precision Engineering: Designed for precision even in heavy-duty operations.

• Advanced Control Systems: Cutting-edge controls enhance operation efficiency and safety.

• Versatility: Suitable for various high-tonnage applications, including automotive and aerospace manufacturing. For more details, visit: YANGLI MG2 Series Press.




Disadvantages of H-Frame Mechanical Presses:

• Are H-frame presses suitable for small-scale production?: Due to their large size and high cost, H-frame presses may not be the best choice for businesses with limited production volumes or those requiring frequent mold changes.

• Higher Initial Cost: H-frame presses are generally more expensive than C-frame presses, both in terms of upfront purchase cost and ongoing maintenance expenses.

• Slower Cycle Times: The heavy-duty construction of H-frame presses can result in slower operation speeds compared to the more agile C-frame presses, making them less suitable for operations needing quick cycle times.




When to Recommend H-Frame Mechanical Presses:

H-frame presses are ideal for businesses that need high-precision presses for heavy-duty applications, such as large-scale metal stamping or aerospace manufacturing. These presses are built for high-tonnage operations that require maximum rigidity and long-term durability.

Comparison of Press Frames: Key Features and Considerations

How to Choose the Right Press Frame for Your Client

Selecting the right press frame is crucial for optimizing your production process and ensuring your equipment's longevity. Here’s how you can make the best recommendation based on your client's needs:

• For Easy Mold Changes and Compact Design: Recommend the C-frame mechanical press if your client requires a compact design, easy mold changes, and high-speed operations for small to medium-sized batches.

• For Heavy-Duty, High-Tonnage Operations: Suggest the H-frame mechanical press for clients who need a high-tonnage, durable press capable of handling large dies and performing heavy-duty tasks like metal stamping, forging, and manufacturing automotive or aerospace components.
