Link drive Eccentric press LS4 model

Home HOT Link drive Eccentric press LS4 model

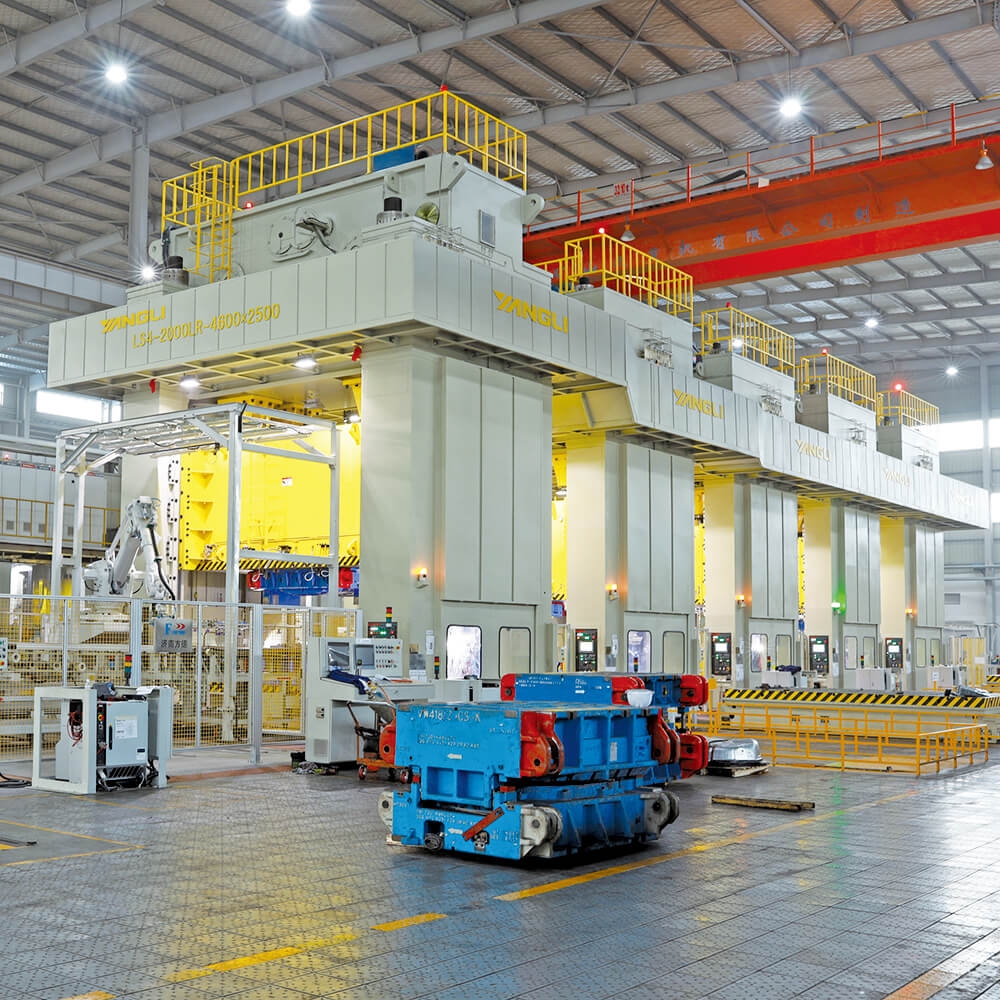

About Link drive Eccentric press LS 4 model

1. Drive and Control Systems

The LS 4 model features a multi-link drive with options for six or eight links, designed using specialized software for precise performance. It combines an asynchronous drive to minimize lateral forces and a high-speed herringbone gear drive for smooth operation. The machine also offers dual control options—electronic cam and mechanical cam—providing flexibility and precision in operation.


2. Structural and Safety Enhancements

Key components are optimized using Finite Element Method (FEM) analysis for strength and durability. The slide is guided by an eight-sided rectangular guide for stability and accuracy. Safety features include a pneumatic friction clutch brake with an optional imported wet type clutch brake, as well as a hydraulic overload protector to ensure reliable operation.


3. Lubrication and Optional Features

The main lubrication is automated with oil, and an optional heating and cooling system helps maintain optimal operating temperatures. Additional options include an air cushion for improved surface finish and a quick die change device to enhance productivity.

3

Composition of Equipment

System Architecture

The Link Drive Eccentric Press LS 4 is composed of a precision-engineered multi-link drive, which can be configured with either six or eight links to meet specific operational requirements. The drive system is meticulously designed using advanced software to ensure optimal performance and efficiency.

Component Enhancement

Critical components of the press are enhanced through Finite Element Method (FEM) analysis, ensuring maximum durability and reliability. The slide is guided by an eight-sided rectangular guide, providing exceptional stability and precision during movement.

Operational Dynamics

The press integrates dual control systems—electronic cam and mechanical cam—to offer flexible and precise control over operations. It features a pneumatic friction clutch brake with an optional imported wet type clutch brake for partial rotation control, along with a hydraulic overload protector to prevent damage from excessive forces.

Support Systems

The main lubrication is automated with oil to ensure smooth and consistent operation. The press also offers optional features such as a heating and cooling system, an air cushion for improved surface finish, and a quick die change device to boost productivity.

Working Principle

1

The multi-link drive system converts rotational motion into linear pressing force through interconnected links.

2

An asynchronous drive mechanism minimizes lateral forces during the sliding motion, ensuring precise and stable operation.

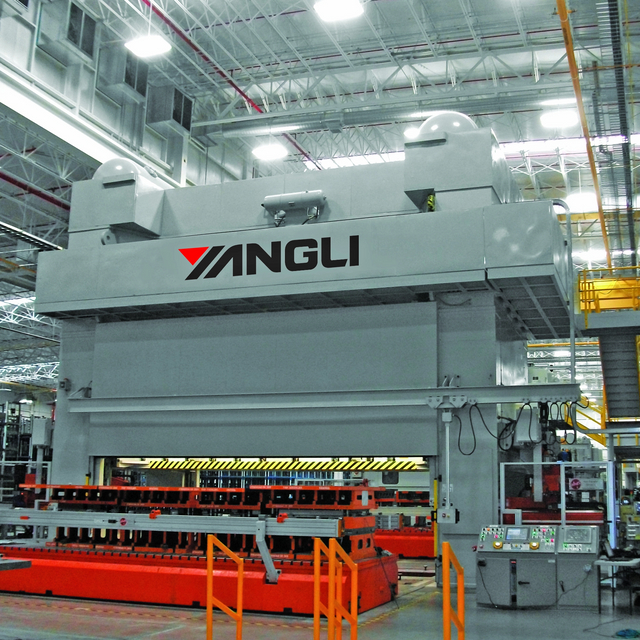

149ffaf0d815553af65a26c31db7f93

Dual control systems—electronic and mechanical cams—provide flexible and programmable motion control to adapt to various production requirements.

Sheet-metal

Main Advantages


High Precision and Stability

The multi-link drive system and eight-sided rectangular slide guide ensure precise and stable movement, minimizing misalignment and improving part quality.

Versatile Control Options

Dual control systems (electronic and mechanical cams) provide flexibility, allowing operators to choose the most suitable control mode for different production tasks.

Advanced Lubrication and Thermal Management

Automatic oil lubrication and optional heating/cooling systems maintain optimal operating conditions, extending component life and reducing maintenance.


Efficient Force Management

The asynchronous drive minimizes lateral forces during operation, reducing wear and tear on components and enhancing overall efficiency.

Enhanced Safety and Reliability

Features such as the hydraulic overload protector and optional wet type clutch brake safeguard the machine from damage and ensure reliable operation.

Productivity Enhancements

Optional features like the quick die change device and air cushion improve production efficiency and reduce downtime, making the press highly adaptable to various manufacturing needs.

Product Types

LS4-800


Nominal force: 8000 kN

Nominal stroke: 13 mm

Slide stroke: 900/1000 mm

SPM (Strokes Per Minute): min-1 to 10-18

Max. die height: 1200 mm

Die height adjustment: 500/600 mm

Bolster (F-B×L-R): 2200×4000 mm

Slide area (F-B×L-R): 2200×4000 mm

Main motor power: 200 kW

Direction of moving bolster: L-R, F-B, LT/RT

LS4-1000


Nominal force: 10000 kN

Nominal stroke: 13 mm

Slide stroke: 900/1000 mm

SPM: 10-18

Max. die height: 1200 mm

Die height adjustment: 500/600 mm

Bolster (F-B×L-R): 2200×4000 mm

Slide area (F-B×L-R): 2200×4000 mm

Main motor power: 200 kW


LS4-1250


Nominal force: 12500 kN

Nominal stroke: 13 mm

Slide stroke: 900/1000 mm

SPM: 10-18

Max. die height: 1200 mm

Die height adjustment: 500/600 mm

Bolster (F-B×L-R): 2200×4200 mm

Slide area (F-B×L-R): 2200×4200 mm

Main motor power: 250 kW


LS4-1300


Nominal force: 13000 kN

Nominal stroke: 13 mm

Slide stroke: 900/1000 mm

SPM: 10-18

Max. die height: 1200 mm

Die height adjustment: 500/600 mm

Bolster (F-B×L-R): 2200×4200 mm

Slide area (F-B×L-R): 2200×4200 mm

Main motor power: 250 kW


LS4-1600


Nominal force: 16000 kN

Nominal stroke: 13 mm

Slide stroke: 1200/1400 mm

SPM: min-1 to 10-18/16

Max. die height: 1400 mm

Die height adjustment: 600/700 mm

Bolster (F-B×L-R): 2500×4500 mm

Slide area (F-B×L-R): 2500×4500 mm

Main motor power: 280 kW

LS4-1800


Nominal force: 18000 kN

Nominal stroke: 13 mm

Slide stroke: 1200/1400 mm

SPM: 10-18/16

Max. die height: 1400 mm

Die height adjustment: 600/700 mm

Bolster (F-B×L-R): 2500×4500 mm

Slide area (F-B×L-R): 2500×4500 mm

Main motor power: 350 kW


LS4-2000


Nominal force: 20000 kN

Nominal stroke: 13 mm

Slide stroke: 1200/1400 mm

SPM: 10-18/16

Max. die height: 1400 mm

Die height adjustment: 600/700 mm

Bolster (F-B×L-R): 2500×4500 mm

Slide area (F-B×L-R): 2500×4500 mm

Main motor power: 400 kW


LS4-2400


Nominal force: 24000 kN

Nominal stroke: 13 mm

Slide stroke: 1200/1400 mm

SPM: 10-18/16

Max. die height: 1500 mm

Die height adjustment: 600/700 mm

Bolster (F-B×L-R): 2600×5000 mm

Slide area (F-B×L-R): 2600×5000 mm

Main motor power: 450 kW

LS4-2500


Nominal force: 25000 kN

Nominal stroke: 13 mm

Slide stroke: 1200/1400 mm

SPM: 10-18/16

Max. die height: 1500 mm

Die height adjustment: 600/700 mm

Bolster (F-B×L-R): 2600×5000 mm

Slide area (F-B×L-R): 2600×5000 mm

Main motor power: 450 kW

yangli
3

Application

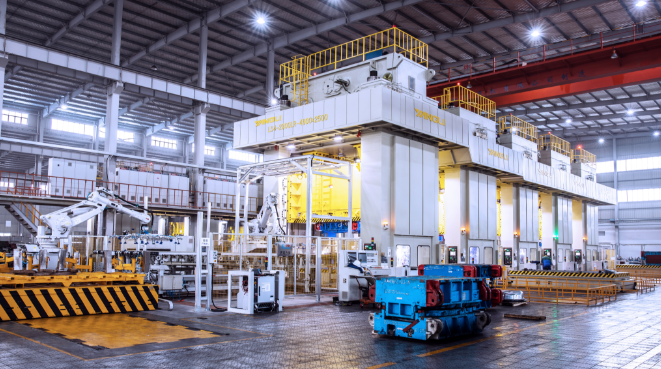

1. Automotive Manufacturing
Used for pressing and forming automotive components such as body panels, engine parts, and transmission components, ensuring high precision and durability.


2. Metalworking and Stamping
Ideal for metal stamping operations, including blanking, piercing, and bending, to produce high-quality metal parts efficiently.


3. Aerospace Industry
Suitable for manufacturing complex and high-precision aerospace components, where reliability and accuracy are critical.


4. General Industrial Applications
Applicable for general pressing tasks in industries such as electronics, construction, and consumer goods, providing versatile and efficient production solutions.
