In the world of modern metal fabrication, precision and efficiency are everything. Among the key machines that have revolutionized the bending and shaping of sheet metal is the press brake. Whether in small workshops or large-scale industrial plants, press brakes are indispensable tools for transforming flat sheets of metal into complex forms with exact angles.
But how does a press brake actually work? What makes it so critical in fabrication processes? This article delves deep into the principles, components, and working mechanisms of press brakes, using real-world examples and technical explanations to uncover the machinery behind the metal.

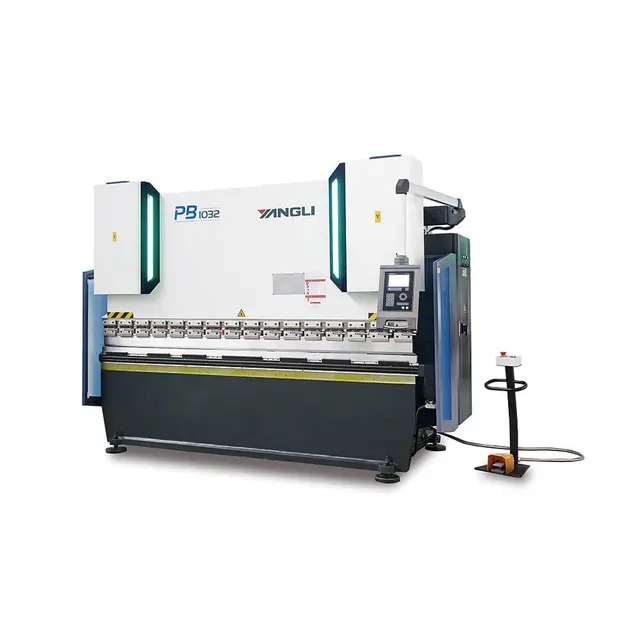

A press brake is a machine tool used to bend sheet metal into predefined shapes and angles. It operates using a combination of force, tooling, and precise control systems. Most press brakes bend metals like steel, aluminum, and brass by pressing them between a punch and a die.
There are different types of press brakes, including:
Mechanical press brakes
Hydraulic press brakes
Pneumatic press brakes
CNC (Computer Numerical Control) press brakes
Each type serves specific needs depending on the complexity of the part, thickness of material, and production volume. For instance, CNC press brakes offer high precision and automation capabilities, which make them ideal for mass production.
At Yangli, we specialize in advanced press brake systems tailored for modern manufacturing environments, ensuring both accuracy and durability.
To understand how a press brake works, we must first explore its core components. A typical press brake consists of:
The frame is the machine’s backbone. It provides the structural support needed to withstand the extreme forces during operation. A sturdy frame ensures minimal deflection and improved accuracy during bending.
The ram moves vertically and holds the upper punch. It exerts pressure onto the metal sheet, forcing it into the die beneath.
The bed supports the die and the workpiece. Together with the ram, it forms the station where actual bending takes place.
The back gauge positions the metal sheet accurately so that the bend occurs at the correct location. In CNC systems, the back gauge can automatically adjust for different bend sequences.
These are the tools used for bending. The punch, mounted on the ram, presses the sheet into the die on the bed. There are various shapes and sizes of punches and dies depending on the desired bend angle and metal thickness.
Yangli offers a wide range of customizable press brake tools to accommodate different forming needs, ensuring precise and repeatable results.
The core function of a press brake lies in air bending, bottoming, or coining. Let’s break down each method:
This is the most common bending technique. The punch doesn’t press the metal all the way into the die. Instead, it bends the metal in the air above the die. The final angle depends on how deep the punch goes. This method reduces wear and allows flexibility in angle adjustments.
Here, the punch forces the metal all the way into the die cavity. This method requires more tonnage but produces consistent angles and minimal springback.
Coining involves high pressure to imprint the punch shape into the metal. It provides very high precision but increases tool wear. It’s used for complex parts requiring tight tolerances.
Below is a comparison of these three methods:
| Bending Method | Tonnage Required | Precision | Tool Wear | Flexibility |
|---|---|---|---|---|
| Air Bending | Low | Moderate | Low | High |
| Bottoming | Medium | High | Moderate | Medium |
| Coining | High | Very High | High | Low |
At Yangli, our press brakes support multiple bending modes, giving fabricators the versatility to choose the right technique based on their project requirements.
With the rise of automation and smart manufacturing, CNC press brakes have become the industry standard. They utilize computer programs to control:
Bend sequences
Ram position
Back gauge positioning
Pressure and speed
This allows for high-speed, highly repeatable, and complex bending operations, even for intricate part geometries. CNC controls reduce operator error and minimize setup time, which is vital in lean manufacturing environments.

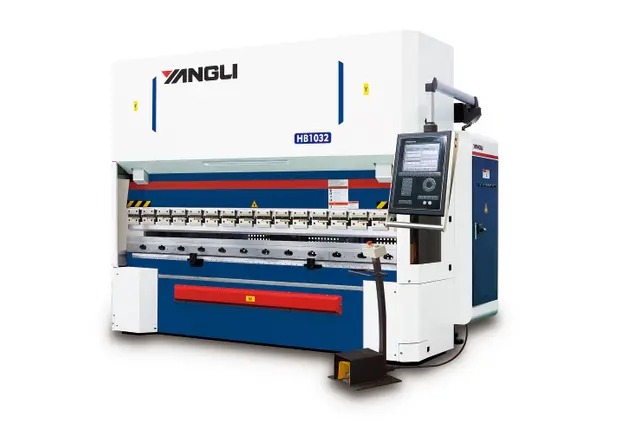

Yangli's CNC press brakes come equipped with intelligent interfaces and software integration capabilities, enabling users to simulate, preview, and adjust bends before even touching the material.
Metal bending can be dangerous due to the immense force involved. As a result, modern press brakes include numerous safety features:
Light curtains and laser guards to prevent hand injuries
Emergency stop systems
Automatic tool change systems to avoid manual handling
Anti-collision detection sensors
By integrating these features, Yangli ensures that our press brakes meet global safety standards while enhancing operator productivity.
Press brakes are versatile machines used across multiple industries. Some common applications include:
Sheet metal panels for automobiles
Appliance housing and chassis
Enclosures for electrical equipment
Cabinets and shelves in furniture manufacturing
Precision parts in aerospace and defense sectors
Regardless of the application, the primary goal remains: to produce consistent, high-quality bends with minimal error. That’s why businesses trust Yangli as their go-to brand for reliability and performance.
A press brake can bend mild steel, stainless steel, aluminum, brass, and various alloys. The type of punch and die, along with the machine's tonnage, determines the material compatibility.
This depends on the material thickness, width, and bend type. For example, bending a 1-meter wide, 3mm thick mild steel sheet may require around 30–40 tons of force. Yangli provides tonnage calculators for precise requirements.
You should consider:
Tonnage capacity
Bending length
Control system (manual vs. CNC)
Tooling compatibility
Material types you frequently work with
For tailored advice, Yangli offers consultation services to help customers select the best-fit machine for their workflow.
Springback is the metal's tendency to return to its original shape after bending. CNC press brakes compensate for this using angle measurement systems and automatic angle correction features, a capability fully supported in Yangli's machines.
Regular maintenance includes daily lubrication, tool inspection, and software updates (for CNC machines). A semi-annual professional check is also recommended. Yangli machines come with detailed maintenance schedules and remote diagnostics support.
The evolution of press brake technology has made it possible to fabricate parts with unmatched precision, speed, and consistency. From small shops to massive production lines, the role of a press brake is pivotal.Understanding how a press brake works isn’t just about learning the mechanics—it's about recognizing the value it brings to modern industry.
At Yangli, we don’t just manufacture machines—we build solutions that empower metal fabricators to reach new heights of productivity. Our press brakes are designed with user-centric interfaces, robust structures, and cutting-edge automation features to meet today’s manufacturing demands.
If you're ready to transform your fabrication process, explore Yangli’s press brake range today and experience the next level of precision and performance.
