Same 1000-Ton Tie-Rod H-Frame: TE2-1000 Or P2H-1000?

When selecting a 1000-ton tie-rod H-frame, manufacturers must carefully consider various factors such as nominal force, slide stroke, speed, die height, and flexibility. The TE2-1000 and P2H-1000, both products of Yangli Group, are two prominent models in this category. Both are straight side tie-rod frame presses designed for heavy-duty industrial applications. While they share similar force capacities, their configurations, features, and performance differ significantly, catering to distinct production requirements.

This article compares the TE2-1000 and P2H-1000, covering their specifications, design features, advantages, and applications. Understanding these key differences allows manufacturers to make informed decisions on which H-frame tie-rod press is the most suitable for their production needs.

What Is a Tie-Rod Frame Press?

A tie-rod frame press is a mechanical press designed with tie rods that reinforce the structure. These presses, also known as straight side tie-rod frame presses, feature a box-like design that provides exceptional rigidity, reducing deflection under high loads.

Key Benefits of a Tie-Rod Frame Press

• High Structural Rigidity: The tie-rod design minimizes frame deformation, ensuring precise and repeatable stamping operations.

• Precision and Stability: The H-frame tie-rod configuration minimizes lateral movement, improving accuracy in metal forming.

• High Load Capacity: Ideal for heavy-duty applications, such as automotive, aerospace, and metal fabrication industries.

• Durability: Reinforced structures extend the operational lifespan and reduce maintenance costs.

• Customization: Adjustable die height, stroke length, and speed settings allow for various production needs.

Yangli

Yangli, a leading name in metal forming machinery, has extensive experience in providing cutting-edge press machines. With a diverse product range, including high-performance H-frame presses like the TE2-1000 and P2H-1000, Yangli is committed to offering innovative solutions that meet the evolving needs of industries such as automotive, electronics, and heavy machinery. Their reputation for precision and quality ensures that clients receive machines that boost productivity and reliability.

Comparing TE2-1000 vs. P2H-1000

Both the TE2-1000 and P2H-1000 are robust 1000-ton tie-rod H-frame presses, but they differ in design and application suitability. Here’s a detailed comparison:

1. Technical Specifications Comparison

2. Key Differences Between TE2-1000 and P2H-1000

• Nominal Stroke and Slide Stroke: The TE2-1000, designed by Yangli, features a larger nominal stroke (13 mm) and extended slide strokes (up to 700 mm), making it ideal for deep drawing applications. In contrast, the P2H-1000 is better suited for precision stamping with shorter strokes (350 mm and 50 mm).

• Speed and Productivity: The P2H-1000 II operates at a higher speed (50-100 SPM), making it perfect for high-speed stamping operations, while the TE2-1000 operates at a lower speed (20-30 SPM) but handles larger strokes for more complex forming processes.

• Die Height and Adjustability: The TE2-1000 offers higher die heights (up to 1100 mm) and greater adjustability, making it versatile for applications requiring flexibility in die setups.

• Work Area and Bolster Size: The P2H-1000 features a larger bolster and slide area, making it better suited for larger workpieces. The TE2-1000, while having smaller bolster sizes, offers flexibility with multiple station options (4/5/6 stations).

3. Application Suitability

Which One Should You Choose?

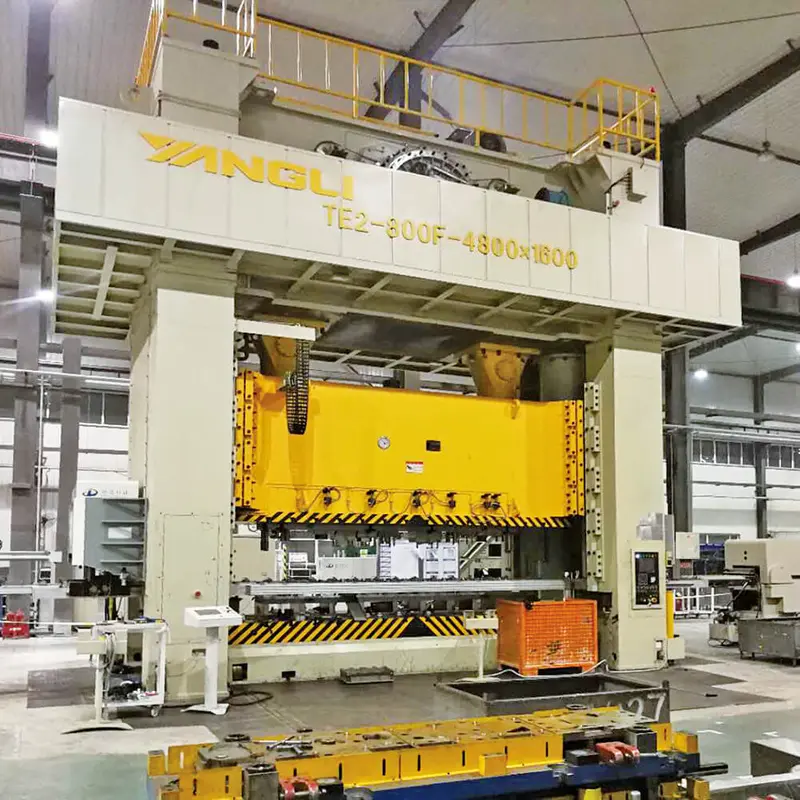

Choose TE2-1000 If:

Your operations require higher die height and adjustability.

You need longer slide strokes for deep drawing or multi-step processes.

You require multiple stations (4/5/6) for complex manufacturing.

Your focus is on heavy-duty forming rather than high-speed production.

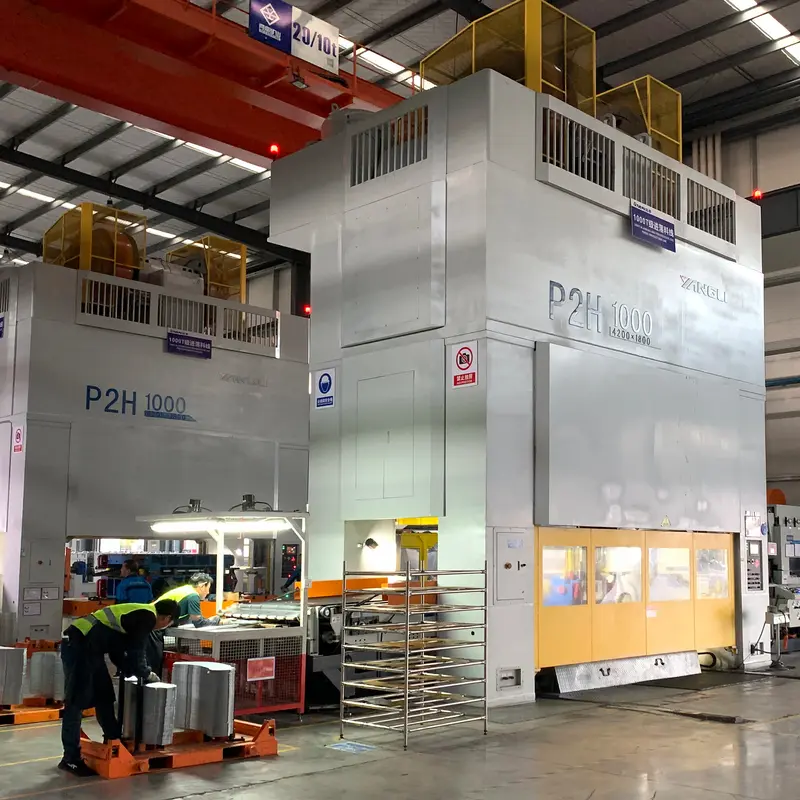

Choose P2H-1000 If:

You need higher strokes per minute (up to 100 SPM) for mass production.

Your production involves high-precision stamping with smaller stroke requirements.

You require a larger bolster and slide area to handle bigger workpieces.

Your facility has a height constraint, as P2H-1000 II has a lower height above floor (7000 mm).

Conclusion

Both the TE2-1000 and P2H-1000 are powerful machines designed and manufactured by Yangli, but the best choice depends on your specific production needs. TE2-1000 excels in heavy-duty applications requiring long strokes and flexibility, while P2H-1000 is optimal for high-speed, precision stamping. Understanding these differences will help manufacturers select the right press for their production lines, optimizing efficiency and quality.
