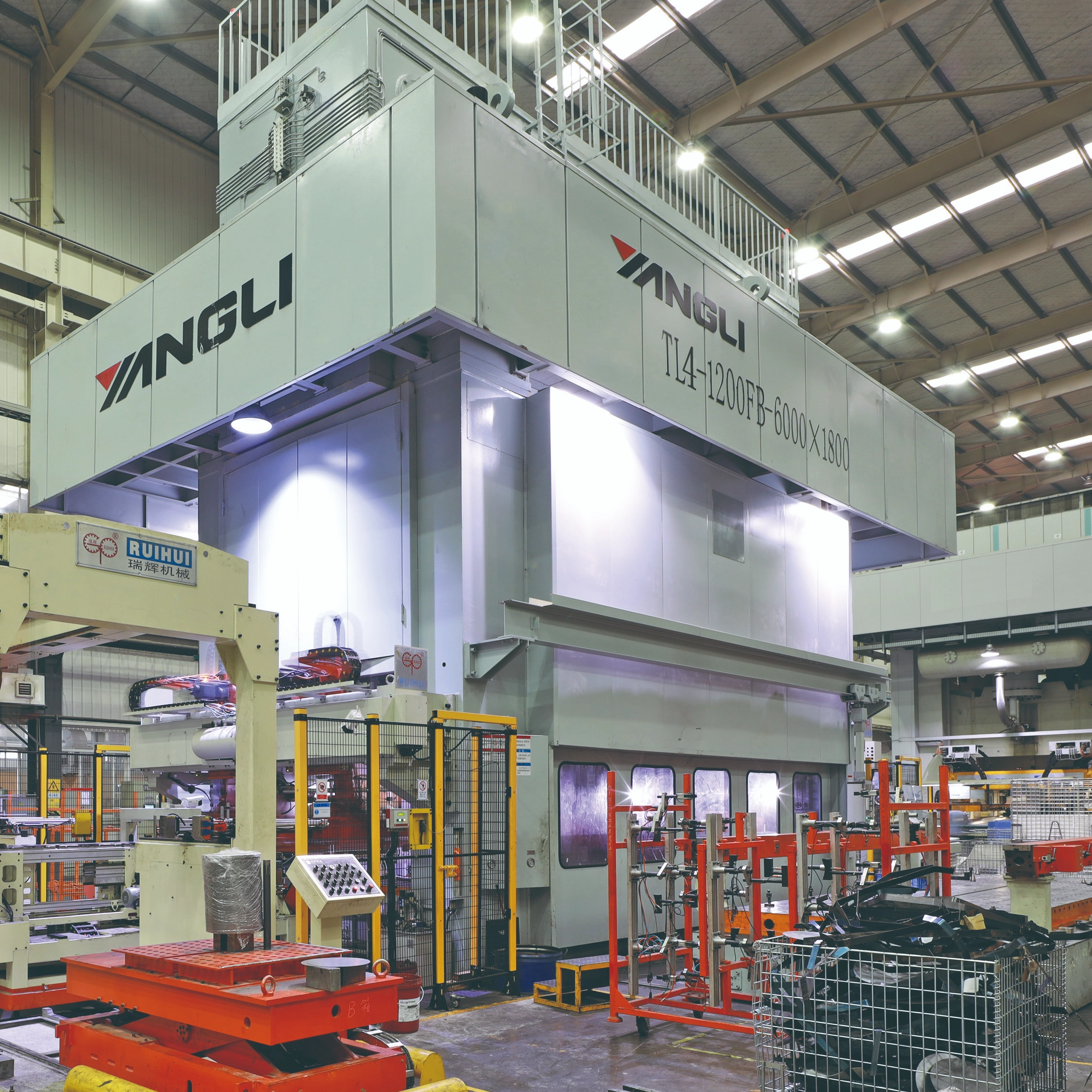

TL4 Series Straight Four Point Multi-link Transfer Press

Availability:

◆ The multi-link drive consists of six links.

◆ The multi-link system is optimized using specific software.

◆ The big and main parts have been optimized using FEM.

◆ The crown, column, and bed have been welded and pre-tightened with tie rod bolts, ensuring high intensity and rigidity.

◆ The drive gear is made of high-strength alloy steel, while the herringbone gear of the high-speed gear pair and the tooth-grinded hardened straight gear of the low-speed gear pair provide reliable performance.

◆ Asynchronous drive minimizes slide lateral force.

◆ The slide uses an eight-face rectangle guide.

◆ The part revolution pneumatic friction clutch brake is standard, with an optional imported wet type clutch brake available.

◆ The hydraulic overload protector is highly sensitive for optimal protection.

◆ Automatic oil lubrication is provided for convenient maintenance.

◆ The machine features an imported safety dual solenoid valve.

◆ Double control is available, with electronic and mechanical cam options.

◆ Optional features include air cushion, tonnage gauge, and anti-vibration pads.

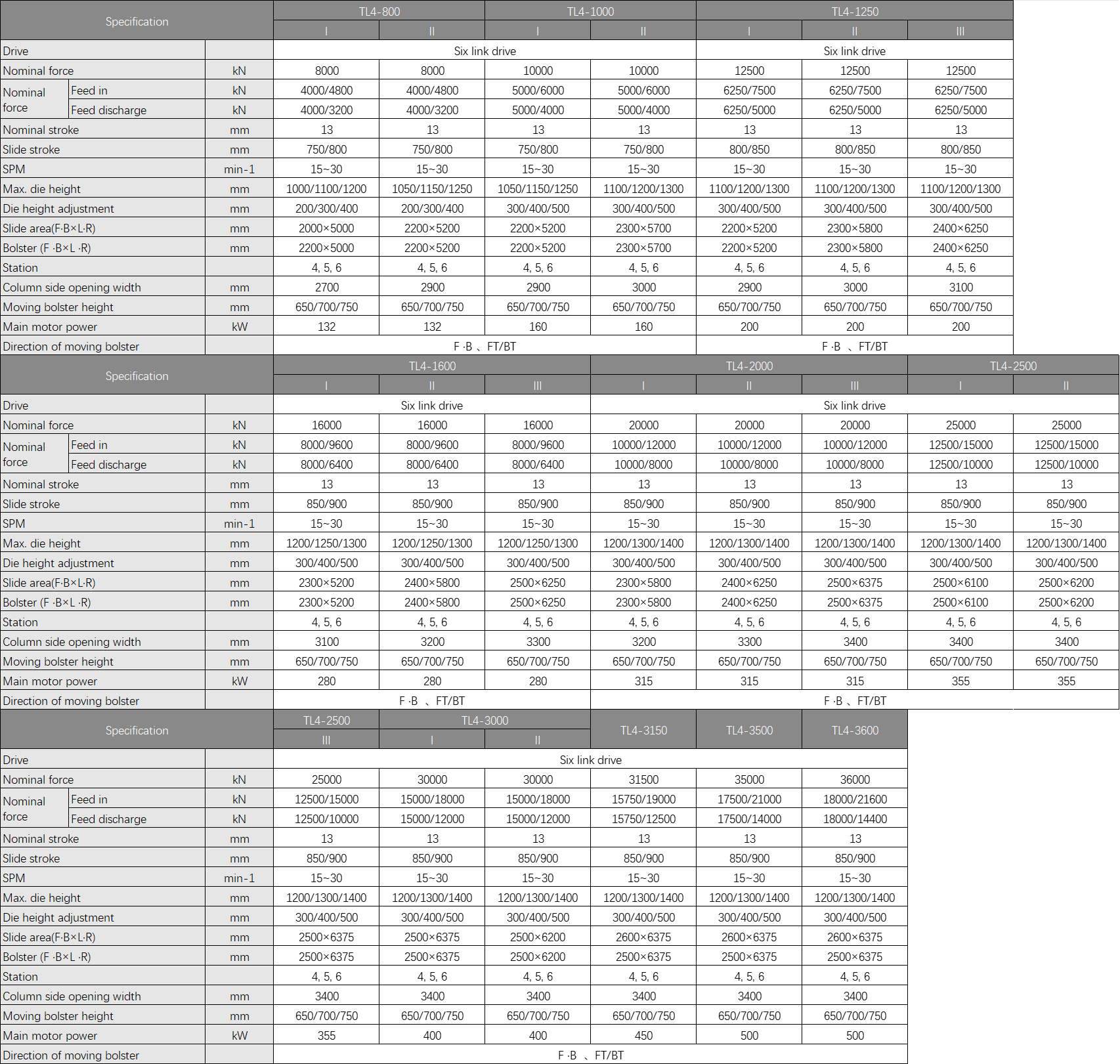

TL4新新
