Types of Dies in the Industry

In the industrial sector, dies are used for material processing as they allow for cutting, shaping, and forming parts with high precision and efficiency. However, it is essential to choose the appropriate type of die for each operation.

In this article, we analyze the different types of dies used in the industry, their characteristics, and applications. Optimize your manufacturing processes and ensure the quality of your finished parts by selecting the most suitable die.

What is Die Cutting?

Die cutting is a mechanical process in which force is applied to a material to give it a specific shape or make precise cuts.

This process can involve cutting, bending, stamping, and forming operations, and is used in the production of metal, plastic, and other material parts.

The precision of die cutting allows for mass production of uniform, high-quality parts.

Cutting Dies

Cutting dies are used to section materials into specific shapes through a shearing process.

These dies are employed in various industries, from automotive to packaging. Cutting dies are essential for operations like cutting and cutting sequences.

Stamping Dies

Stamping dies are tools designed to transform a flat part into a three-dimensional shape by stamping the material into a mold.

This type of die is commonly used in the production of automotive and household appliance components as it allows for the creation of parts with specific depths and contours.

Progressive Dies

Progressive dies perform multiple operations in a single pass through several stations in a press.

This type of die is ideal for producing complex parts in large volumes, such as in the electronics and automotive industries.

Each station of the progressive die performs part of the work until the final part is completed.

Bending Dies

Bending dies are used to bend or fold materials without changing their thickness. They are essential in the manufacturing of structural components and metal housings. This is because they allow the creation of specific angles and shapes by means of the press ram's impact.

Forming Dies

Forming dies are versatile tools that allow the shape of a material to be modified through stretching, compression, or both.

These dies are used in the production of parts with complex and precise shapes, adapting to the specific needs of each die design.

Perforating Dies

Perforating dies are designed to create precise holes in materials. They are widely used in the production of electronic components, metal panels, and structural parts, where accuracy and repetition are critical.

Transfer Dies

Transfer dies allow the movement of the part from one station to another within the same press, performing multiple operations until the desired final shape is achieved.

This type of die is especially useful in the production of large and complex parts that require several forming steps.

Trimming Dies

Trimming dies are used to remove excess material from a previously formed part, refining edges and adjusting the final shape. They are essential in the production of die-cut parts with strict precision requirements.

Broaching Dies

Broaching dies perform precise and complex cuts using a series of blades mounted on a bar. This type of die is ideal for manufacturing gears and high-precision components that require a perfect finish.

Learn More About Dies

In manufacturing, choosing the right type of die is crucial for optimizing production processes and ensuring the quality of finished parts.

From simple dies to progressive and transfer dies, each type offers specific advantages for different applications.

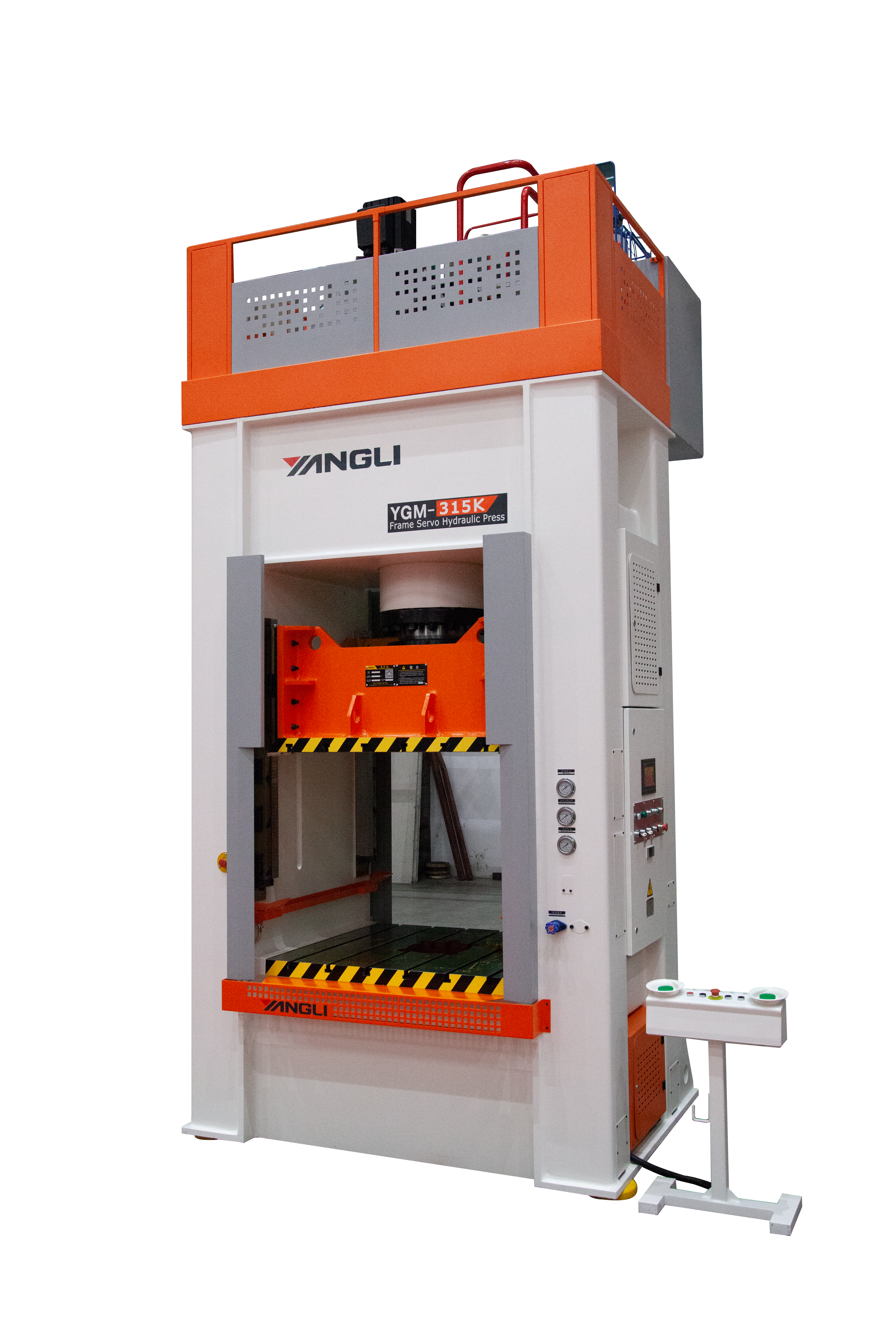

If you want to learn more about dies or die-cutting machines, we invite you to visit our catalog. At YANGLI Mexico, we offer the best mechanical and hydraulic presses on the market, directly from the manufacturer at competitive prices. Explore our catalog.
