Yangli’s Hot Forging Press
High-Speed, High-Precision Forging Solutions for Demanding Hot Forming Applications

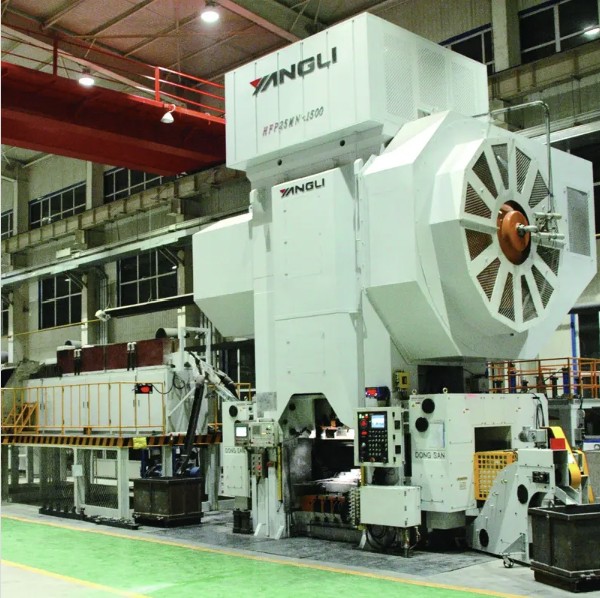

The HFP/HGP Series Hot Die Forging Press
The HFP/HGP Series Hot Die Forging Press delivers high-speed forming at 50–100 strokes per minute, significantly reducing die-to-workpiece contact time to minimize heat buildup and extend die life. Built with a high-inertia flywheel and two-stage drive (HGP models), the press offers exceptional output energy for demanding hot forging and extrusion tasks. The welded composite frame, with hydraulic tie-rod preloading, ensures superior stiffness, easy transport, and pinpoint forging precision—while the widened table on HGP enhances production adaptability.
Technical Specifications
Robust Design and Precision Engineering for Maximum Forming Performance
Drive & Performance
This series of presses features asynchronous or eccentric gear drives, delivering nominal capacities ranging from 12,500 kN to 40,000 kN. Slide stroke lengths vary between 320 mm and 500 mm, with stroke rates depending on the model, reaching up to 10–40 spm. High-strength gears and precision guide systems ensure stability and accuracy under high loads and speeds.
Structure & Forming Capability
Built with a high-rigidity welded frame, the press employs eight-sided or “X”-type slide guide designs. Shut height ranges from 900 mm to 1,600 mm, with slide adjustment between 200 mm and 300 mm. Large slide and bolster dimensions—up to 2,800 × 1,400 mm—accommodate sizable dies and enable complex part forming.
Operation & Configuration Features
Equipped with a high-sensitivity hydraulic overload protector, automatic lubrication, imported dual safety solenoid valves, and dual control systems (electronic and mechanical cam). Selected models feature a moving bolster (up to 8,000 × 3,000 mm) and optional accessories such as air cushions, tonnage gauges, and anti-vibration pads, supporting multi-station automation and rapid die change.
Contact Us
Application
Automotive & Heavy Vehicle Components
From crankshafts and gears to steering knuckles and axle parts, our HFP/HGP series empowers automotive manufacturers to produce large, high-strength components with unmatched accuracy and efficiency. High tonnage, rapid strokes, and generous bolster dimensions enable faster production cycles, lower defect rates, and a stronger competitive edge in the market.
Industrial Machinery & Heavy Equipment Forgings
Whether it’s shafts, flanges, or couplings for construction, mining, and agricultural machinery, the HFP/HGP delivers the durability and forming precision you need. Its robust frame and high-energy output ensure every forging meets demanding load requirements—helping you boost productivity, extend part service life, and reduce overall operating costs.
Energy & Aerospace Structural Parts
For turbine discs, aerospace brackets, and high-performance energy components, precision is non-negotiable. The HFP/HGP’s advanced drive system, thermal expansion compensation, and intelligent controls ensure each part achieves optimal strength and dimensional stability—helping you meet strict industry standards and win high-value contracts.
