What is a straight side press
A Straight Side Press is a closed-frame mechanical press with parallel vertical columns, built for exceptional rigidity and stability. It handles high-impact, high-tonnage operations with precision, serving industries such as automotive, aerospace, home appliances, and electronics. The robust frame minimizes deflection, ensuring accuracy, long service life, and reliable performance in mass production. This performance defines Yangli Group. Since 1966, we have grown into a leading global manufacturer of high-end metal forming equipment. Our Straight Side Presses combine strength, accuracy, and dependability, backed by decades of engineering expertise. We continue to innovate with a focus on quality, productivity, and sustainable manufacturing. Scroll down to learn more about straight-side presses work principle.
Straight Side Press Benefits
Exceptional Rigidity and Precision
The closed-frame design with vertical side columns minimizes deflection and misalignment. This ensures the ram and bolster remain perfectly parallel under high tonnage, delivering consistent accuracy in every stroke.
High Tonnage Capacity
Engineered for heavy-duty applications, the straight side press can handle thick, high-strength materials with ease. It excels in demanding operations such as heavy stamping and deep drawing without compromising stability.
Long-Lasting Durability with Low Maintenance
Constructed from pre-stressed or fully welded steel frames and stress-relieved for maximum strength, the press resists fatigue and deformation. This extends its operational life and reduces downtime and maintenance costs.
Versatile for Multiple Applications
Compatible with automation systems such as feeders and transfer lines, the straight side press serves a wide range of industries—including automotive, appliance, aerospace, and electronics. It supports processes from simple blanking to deep drawing, with mechanical, hydraulic, or servo drive options for greater production flexibility.
Straight Side Press Application

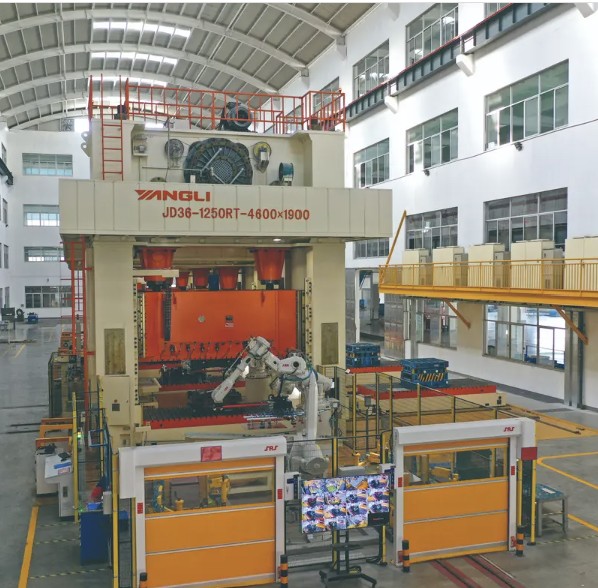

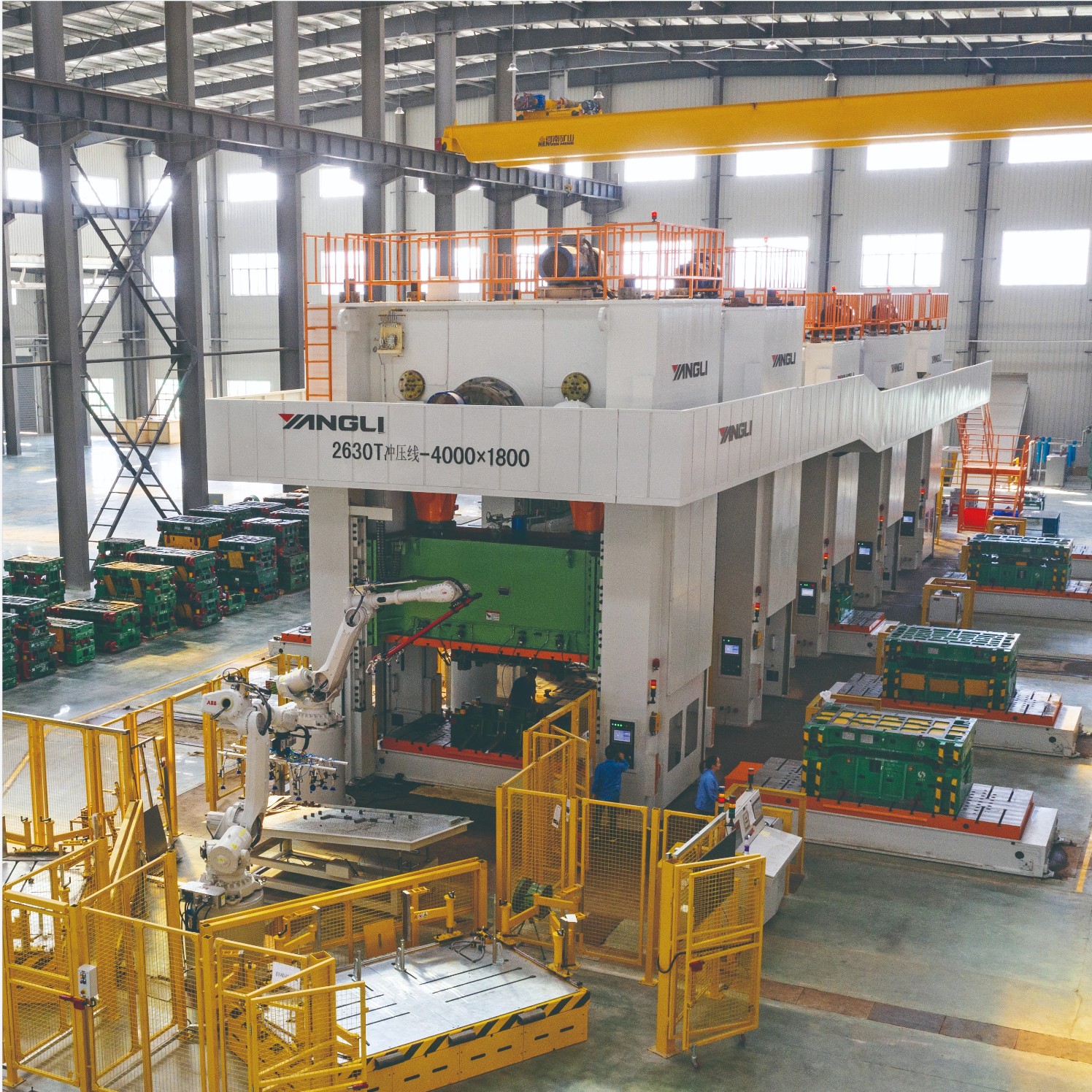

Automotive Body and Structural Components
Straight side presses are widely used for forming large vehicle body panels, chassis frames, and high-strength structural parts. Their high tonnage capacity (often 400–2,000 tons) allows them to handle advanced high-strength steel (AHSS) and aluminum alloys without deformation. The closed-frame rigidity ensures precise forming tolerances—critical for achieving tight fitment and maintaining crash safety performance in automotive production.
Appliance and Consumer Electronics Manufacturing
From refrigerator doors to washing machine panels and laptop casings, these industries require high-speed, repeatable accuracy for thin sheet metal parts. The straight side press minimizes deflection, ensuring consistent part thickness and shape across mass production runs. When integrated with automated feeders and transfer lines, production speeds can exceed 30–60 strokes per minute, meeting high-volume manufacturing demands while maintaining surface quality.
Aerospace and Precision Metal Parts
Aerospace components—such as fuselage panels, wing ribs, and precision brackets—must meet stringent dimensional tolerances (±0.05 mm or better). The straight side press’s superior rigidity prevents frame distortion under extreme loads, ensuring every part meets exact specifications. Its compatibility with servo drive systems allows controlled forming speeds, reducing material stress and improving metallurgical integrity, which is essential for high-performance aerospace alloys.
Straight Side Press Components
Rigid Backbone (Frame)
This is the structural core—a closed, box-like steel frame with straight vertical side columns. It’s engineered to resist deformation under high loads, delivering the stability and precision essential for accurate stamping.
Ram (Slide Mechanism)
The ram is the press's vertically moving element that directly applies force to the workpiece. It is guided within the frame—typically via crankshaft or toggle mechanisms—to ensure perfectly linear, accurate downward travel.
Bolster Plate (Work Surface)
A thick, precisely aligned metal surface where the die is mounted. Stability in this component is crucial for aligning the tooling and achieving uniform stamping results.
Drive System (Motion Powertrain)
This system—powered by an electric motor—transfers motion to the ram. Common mechanisms include crankshafts or toggles that convert rotational energy into controlled linear motion.
Resource
Catalog Download
Ebook Download
Video
Yangli Product - J36 Series Straight Two Point Press
Explore Our Straight Side Press Product
Built for Unmatched Strength and Precision
Engineered with FEM-optimized components and a pre-stressed tie-rod welded frame, the J36 press delivers rock-solid rigidity even under extreme loads. This robust structure keeps the frame perfectly stable, ensuring high-accuracy forming, reducing downtime, and extending service life—making it the reliable powerhouse your production line deserves.
Smooth, Stable Power You Can Trust
Powered by high-strength alloy steel gears—hardened, precision-ground, and designed with a high-speed herringbone gear set plus a low-speed spur gear set—the J36 ensures exceptional transmission efficiency and stability. The asynchronous drive minimizes slide deflection, guaranteeing smoother strokes, higher product quality, and less wear on critical components.
Safety, Automation, and Productivity in One
