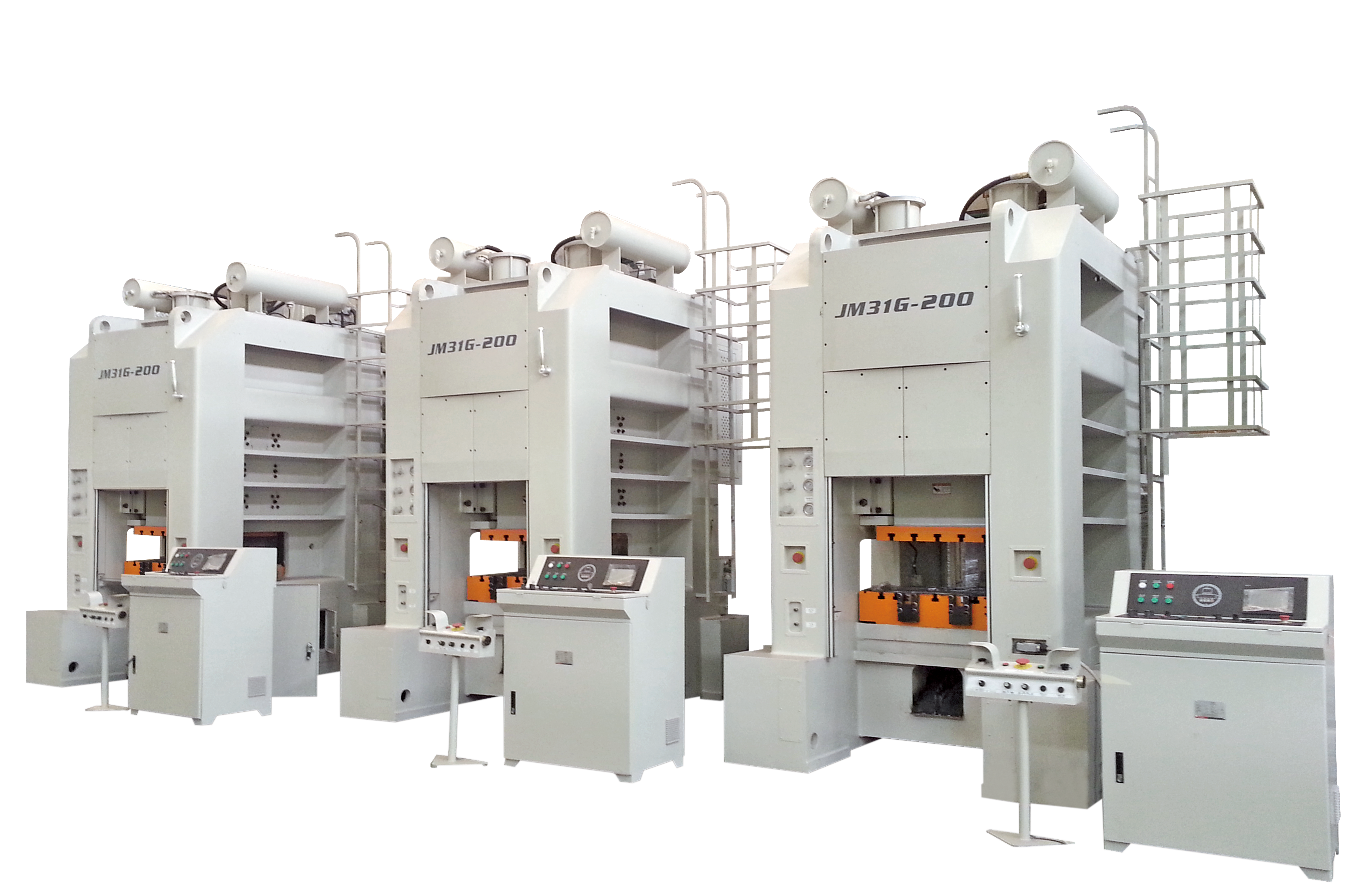

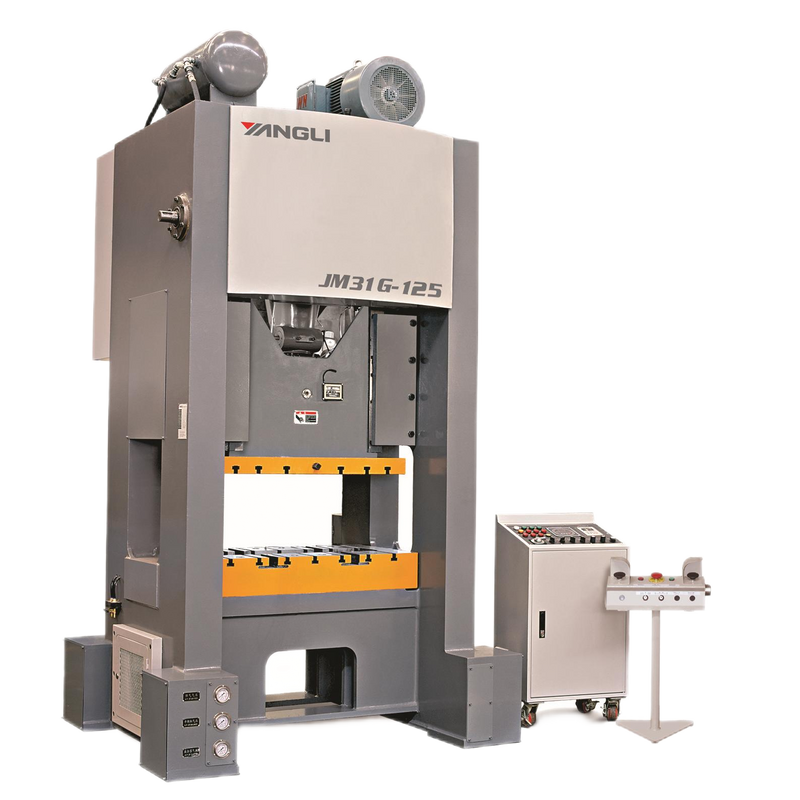

◆ Steed welded gantry type frame with high rigidity.
◆ Portrait crankshaft with short pivot point distance and high rigidity.
◆ Crankshaft support: rolling bearing with high accuracy.
◆ Motor with inverter with stable velocity.
◆ Slide eight-face roller guide with high guide accuracy.
◆ Mechanical die height adjustment with digital display and 0.10mm accuracy.
◆ Hydraulic overload protector 80T/125T link mechanical locking, 160T/200T link hydraulic locking.
◆ Fully forced oil lubrication system.
◆ Electrical cam control, integrated interface, easy for operation and with high accuracy.
◆ Applied for punching of dynamic chain, motor stator and screen mesh, etc.
◆ II type with small column clearance and with 1/10000 deflection of bolster.
◆ II type is especially for punching of plate with high intensity, such as dynamic chains.
