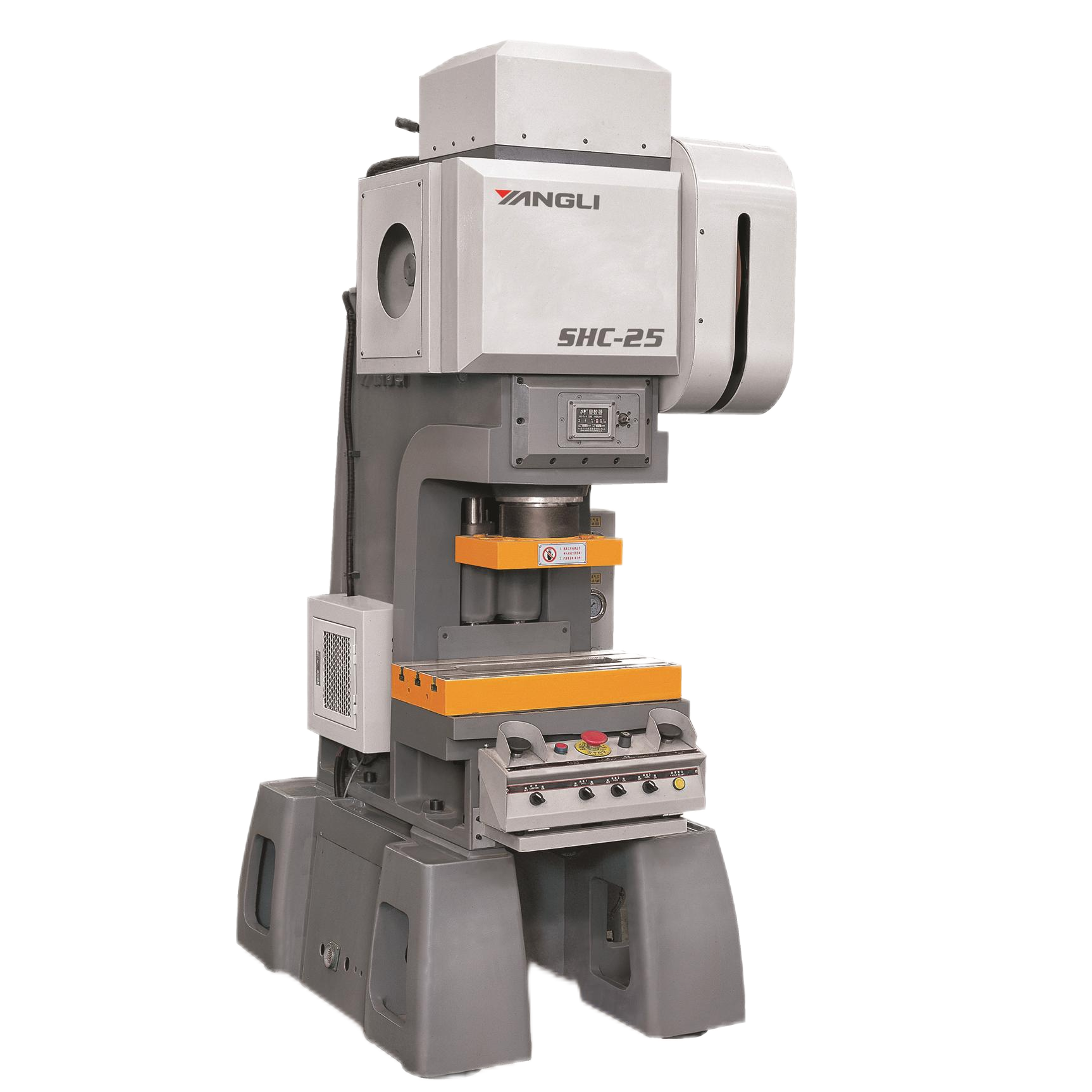

◆ The SHC series features a robust cast iron frame and bed, providing high strength, stability, and minimal vibration.

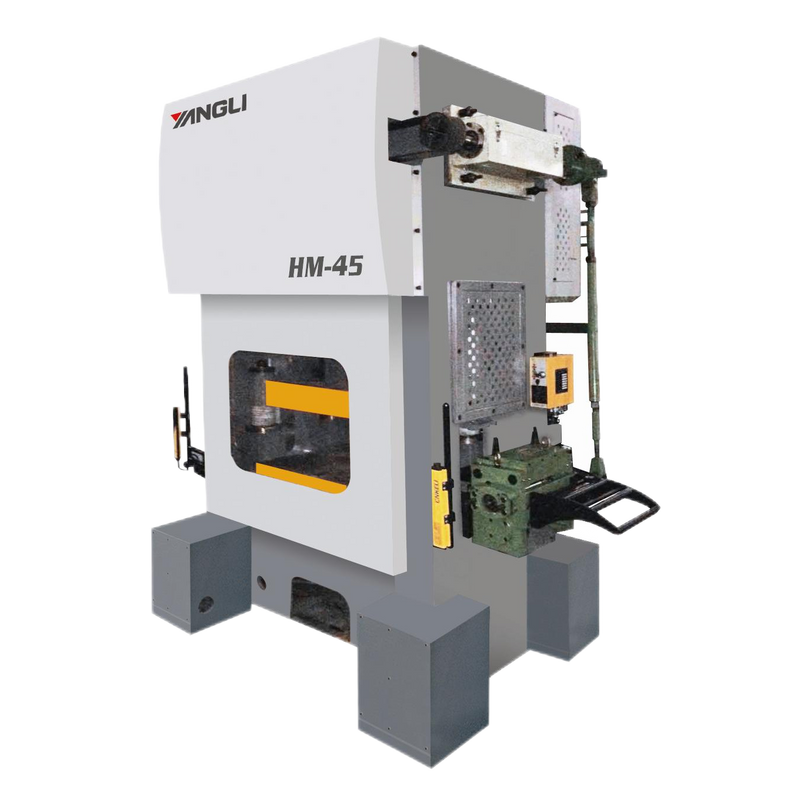

◆ The HM-45 model is equipped with a steel welded frame.
◆ CNC machining is applied to various components such as the frame body, slide, link, and center column.
◆ The main drive utilizes an inverter to maintain a stable speed.
◆ To ensure accurate drive, the main shaft is equipped with imported rolling bearings.
◆ The SHC series incorporates three cylindrical guide posts (two guide posts and one center column).
◆ The HM-45 series features five cylindrical guide posts (four guide posts and one center column).
◆ Reverse lateral load balancing is implemented to ensure optimal balance of the slide during punching.
◆ Manual die height adjustment is available with a digital display offering 0.10mm accuracy.
◆ An oil pressure die locking device is utilized to ensure accurate bottom dead center positioning.
◆ A fully thin oil forced lubrication system is employed.
◆ The PLC rotary encoder provides reliable performance and easy operation.
