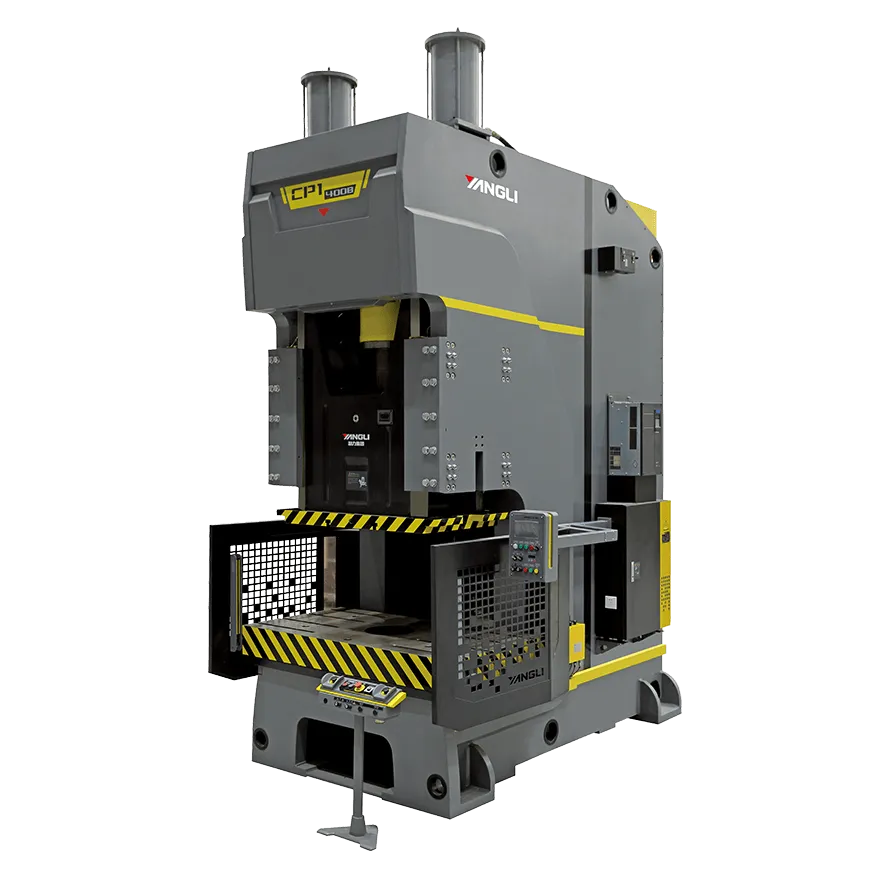

CP1 Series Open Front Single Point Press With High Accuracy High Performance

Product Features

▸JIS Class I accuracy.
▸High-strength welded steel frame with excellent rigidity.
▸Fixed SPM for stable and consistent operation.
▸Combined dry friction clutch.
▸Six-face rectangular extended guide; CP1-315B and CP1-400B use an eight-face extended guide.
▸Hydraulic overload protector.
▸CP1-25 uses manual die-height adjustment with numeric display.
▸CP1-45 and larger models use electric die-height adjustment with digital display.
▸Lifting balance cylinder.
▸Imported dual solenoid valve.
▸Electric forced grease lubrication system.
▸Manual oil lubrication for the balance cylinder.
▸Integrated control panel with electric cam and touch screen.
▸PLC control from an internationally recognized brand.
▸Contactors and push buttons from internationally recognized brands.
▸One set of blowing device included.
▸Optional: wet clutch, air cushion, light curtain, inverter motor, slide knockout device, bolster LR housing, automation equipment and customized press color.

Specifications

Specification Unit CP1-25 CP1-45 CP1-63 CP1-80 CP1-110 CP1-125 CP1-160B CP1-200B CP1-250B CP1-315B CP1-400B
Nominal force kN 250 450 630 800 1100 1250 1600 2000 2500 3150 4000
Nominal stroke mm 3.2 4 4 5 6 6 6 6 8 8 10
Slide stroke mm 80 100 130 150 180 180 200 200 250 250 250
SPM – Fixed min⁻¹ 100 80 70 60 50 50 45 40 30 30 25
SPM – Variable
(Optional)		 min⁻¹ 80-120 40-90 35-80 50-70 30-60 30-60 25-50 25-50 20-40 25-40 20-30
Max die height mm 250 270 300 340 350 350 400 450 500 550 550
Die height adjustment mm 50 60 80 80 90 90 110 110 120 120 120
Between slide center and frame mm 210 230 300 300 350 350 380 410 420 460 490
Bolster area
(F · B × L · R)		 mm 400×700 440×810 580×900 580×1000 680×1150 680×1150 740×1300 800×1400 820×1550 880×1650 940×1800
Bolster thickness mm 80 100 110 120 140 140 150 160 180 200 200
Bed opening
(Dia / F · B × L · R)		 mm 260×250 300×300 390×460 390×520 370×300 370×300 420×340 420×340 370×570 440×580 440×580
Slide area
(F · B × L · R)		 mm 340×360 340×410 420×500 450×560 500×650 540×680 580×770 650×850 680×950 700×1000 720×1200
Shank hole
(Dia × Depth)		 mm Φ40×60 Φ40×75 Φ50×75 Φ50×75 Φ60×75 Φ60×75 Φ65×90 Φ65×90 Φ70×90 Φ70×90 Φ70×90
Between columns mm 440 530 580 640 700 720 790 820 960 1020 1020
Main motor power kW 3 5.5 5.5 7.5 11 11 15 18.5 22 30 37
Air cushion
(Option)
Eject force × Stroke		 kN × mm / 30×70 40×70 40×70 60×70 60×70 100×90 100×90 160×90 160×90 160×90
Outline dimension
(F · B × L · R × H)		 mm 1400×1100×2500 1500×1200×2700 1700×1450×3000 1750×1550×3200 1960×1700×3300 1960×1740×3300 2380×1820×3570 2390×1890×3700 2800×2600×4500 2950×2650×4550 3160×2720×4650
