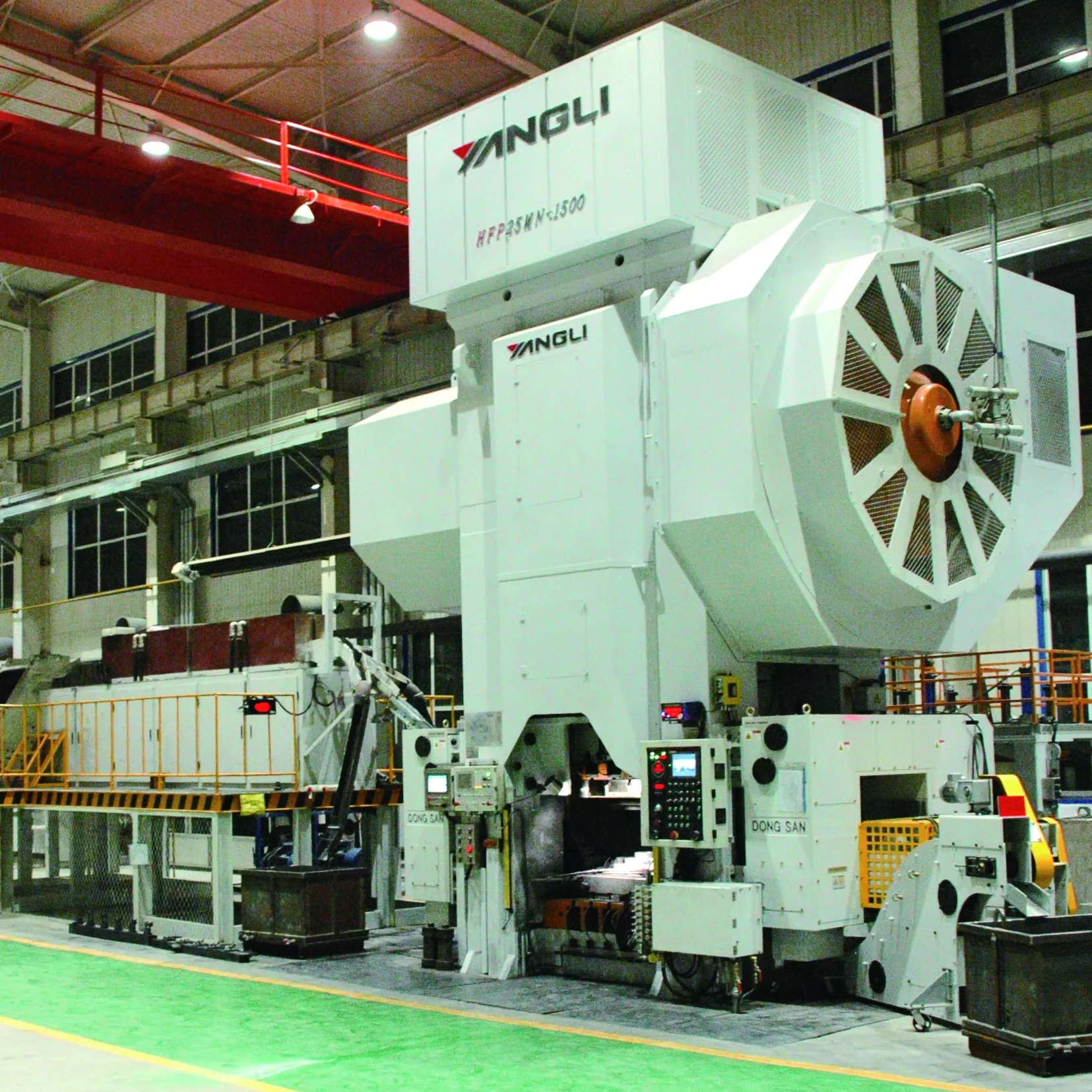

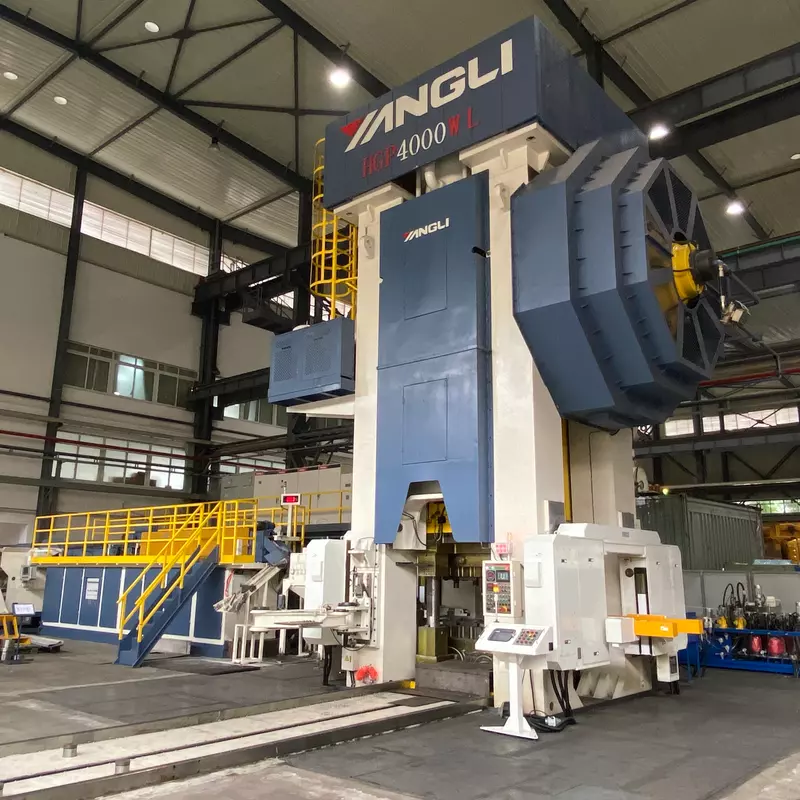

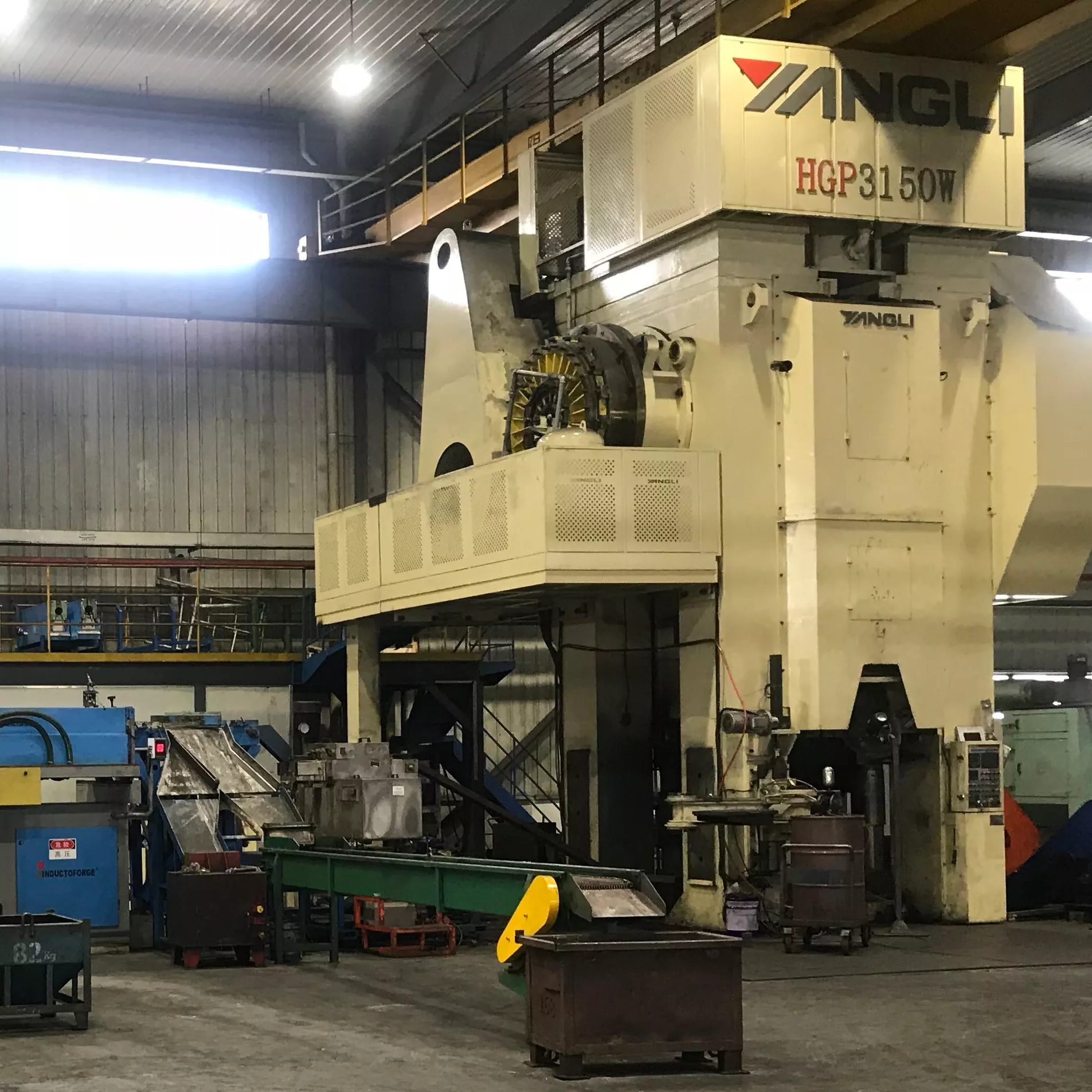

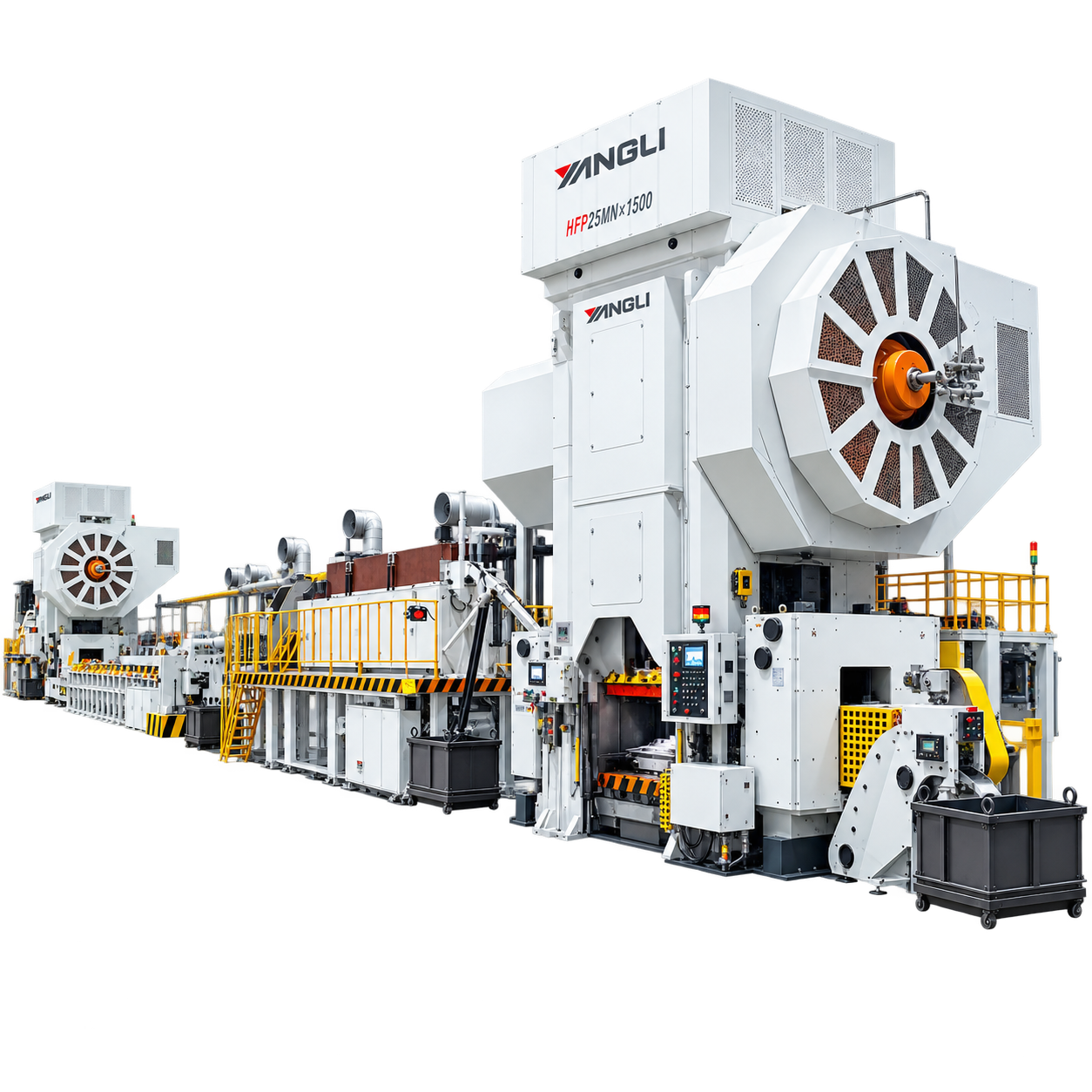

HFP/HGP Series Hot Die Forging Press

Product Features
▸High production speed of up to 50–100 strokes per minute, reducing die-to-workpiece contact time, limiting temperature rise and extending die service life.
▸High flywheel rotational inertia provides large output energy, making the press especially suitable for hot forging and extrusion applications.
▸HGP series adopts a two-stage transmission system with an additional gear drive, providing higher output energy than the HFP series.
▸Composite welded frame with high-strength tie rods and hydraulic pre-tensioning provides excellent overall rigidity, high forging accuracy and convenient disassembly for transportation.
▸The wider HGP bolster improves adaptability to different forging processes and production requirements.
▸Wide-body two-point integral connecting rod and extended guide design provide excellent resistance to eccentric loading and support multi-station forging layouts.
▸Side-window structure supports transverse feeding and can be combined with a step-type manipulator for highly automated multi-station forging.
▸X-type guide design compensates for guide-clearance changes caused by thermal expansion during operation.
▸Die height is adjusted by an eccentric pin inside the slide, providing stable and reliable adjustment.
▸Clutch and brake adopt a floating friction-block design with simple structure, reliable operation and convenient maintenance.
▸Toothed guiding improves clutch and brake operating accuracy while reducing operating noise and extending friction-block service life.
▸Forced brake cooling minimizes temperature rise and supports high-speed single-stroke operation.
▸Integrated control system monitors air pressure, shaft temperature, cooling water, lubrication, faults, eccentric-shaft speed and angular position for a high degree of automation.
▸Equipped with a touch-screen interface for flexible machine parameter setting and adjustment.

Specifications

Specification HFP 630 HFP 800 HFP 1000 HFP 1350 HFP 1600 HFP 2000 HFP 2500 HFP 3150 HFP 4000 HFP 5000 HFP 6300 HGP630W HGP1000W HGP1350W HGP1600W HGP2000W HGP2500W
Nominal force kN 6300 8000 10000 13500 16000 20000 25000 31500 40000 50000 63000 6300 10000 13500 16000 20000 25000
Slide stroke mm 220 240 250 270 280 300 320 340 360 400 450 240 250 270 280 300 320
SPM min-1 100 100 100 95 90 85 80 60 55 45 50 80 90 90 85 80 75
Max. die height mm 650 750 800 900 1000 1100 1200 1300 1400 1500 1600 800 1000 1000 1100 1200 1300
Die height adjustment mm 10 12 14 16 18 20 22 25 28 32 35 10 14 16 18 20 22
Bolster area L·R mm 690 770 850 950 1050 1210 1300 1400 1500 1570 1840 800 1000 1100 1200 1350 1500
F·B mm 920 1000 1120 1300 1400 1530 1700 1860 2050 2250 2350 970 1120 1300 1400 1530 1700
Slide area L·R mm 670 740 820 920 1030 1180 1260 1360 1460 1550 1800 780 980 1080 1180 1320 1460
F·B mm 700 800 930 1020 1140 1260 1380 1540 1710 1875 1925 750 930 1050 1140 1260 1380
Upper ejector device Type / MECH MECH MECH MECH MECH MECH MECH MECH MECH MECH MECH MECH MECH/HYD MECH/HYD MECH/HYD MECH/HYD MECH/HYD
Pressure kN 30 40 50 60 80 100 125 160 200 250 300 40 50 80 80 100 125
Stroke mm 25 25 30 30 37 40 44 48 52 60 60 25 30 37 37 40 44
Lower ejector device Type / MECH MECH MECH MECH MECH MECH MECH MECH MECH/HYD HYD HYD MECH MECH/HYD MECH/HYD MECH/HYD MECH/HYD MECH/HYD
Pressure kN 100 125 150 200 240 300 375 475 600 650 700 120 150 240 240 300 375
Stroke mm 25 25 30 30 37 40 44 48 52 or 200 0-150 0-150 25 30 37 37 40 44
Drive motor Power kW 55 55 75 90 110 132 160 190 250 320 355 75 90 110 132 160 190
Synchronous speed r/min 600 600 600 600 600 600 600 1500 1500 1500 1500 1000 1500 1500 1500 1500 1500
Voltage V 380 380 380 380 380 380 380 380 380 380 380 380 380 380 380 380 380

PRODUCT:

HFP/HGP Series Hot Die Forging Press

Name *
Email *
Company *
Phone
Country
Message

Product Related

TL4 Series Straight Four Point Multi-link Transfer Press

Read more

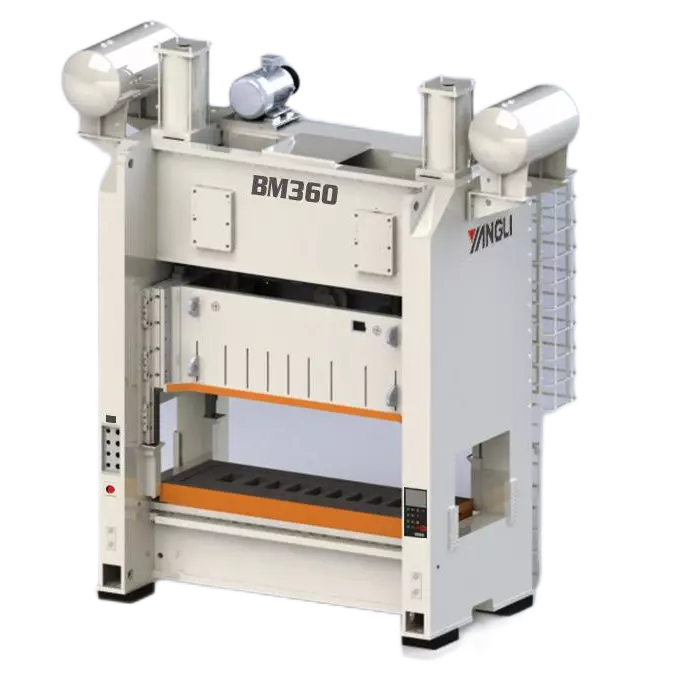

BM Series Transfer Drawing Press
