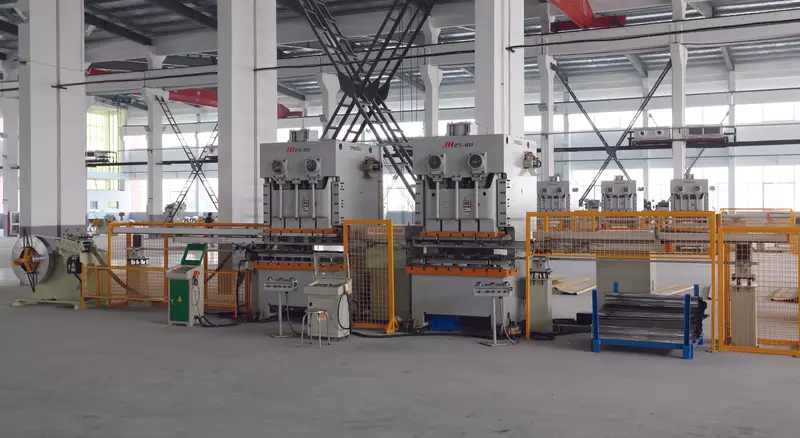

JH25 Series Open Front Two Point Press With High Performance
Product Features
▸High-strength welded steel frame for excellent rigidity and durability.
▸Two crankshafts rotate in opposite directions to eliminate lateral forces.
▸High-performance clutch and brake with high torque capacity.
▸Oil-bath gear lubrication for smooth and reliable operation.
▸Six-face rectangular extended guide for enhanced stability and precision.
▸Hydraulic overload protector.
▸Electric die-height adjustment with digital display.
▸Lifting balance cylinder for stable slide movement.
▸Imported dual solenoid valve for reliable operation.
▸Electric forced grease lubrication system.
▸Manual lubrication for the balance cylinder.
▸One set of blowing device included.
▸Integrated control panel with electric cam and touch screen.
▸PLC control from an internationally recognized brand.
▸Internationally branded push buttons, switches and air circuit breakers.
▸Type I is the standard configuration, while Type II can be customized according to application requirements.
▸Optional: air cushion, light curtain, slide knockout device and automation equipment.
Specifications
| Specification | Unit | JH25-80 | JH25-110 | JH25-160 | JH25-200 | JH25-250 | JH25-315 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I | II | I | II | I | II | I | II | I | II | I | II | ||
| Nominal force | kN | 800 | 1100 | 1600 | 2000 | 2500 | 3150 | ||||||
| Nominal stroke | mm | 5 | 3 | 5 | 3 | 6 | 3 | 7 | 3 | 7 | 3.5 | 7 | 3.5 |
| Slide stroke | mm | 160 | 90 | 180 | 110 | 200 | 130 | 250 | 150 | 280 | 170 | 280 | 170 |
| SPM – Fixed | min⁻¹ | 55 | 70 | 50 | 60 | 45 | 55 | 35 | 45 | 30 | 40 | 30 | 40 |
| SPM – Variable (Optional) |
min⁻¹ | 40-70 | 55-90 | 30-60 | 50-80 | 25-50 | 40-65 | 25-50 | 35-55 | 20-40 | 30-45 | 20-40 | 30-40 |
| Max die height | mm | 350 | 400 | 450 | 500 | 550 | 550 | ||||||
| Die height adjustment | mm | 80 | 100 | 100 | 110 | 120 | 120 | ||||||
| Between slide center and frame | mm | 310 | 350 | 390 | 430 | 470 | 480 | ||||||
| Bolster area (F · B × L · R) |
mm | 600×1600 | 680×1880 | 760×2040 | 840×2420 | 920×2700 | 940×2900 | ||||||
| Bolster thickness | mm | 110 | 145 | 130 | 165 | 150 | 185 | 170 | 220 | 180 | 235 | 190 | 255 |
| Slide area (F · B × L · R) |
mm | 460×1200 | 520×1360 | 580×1500 | 650×1900 | 700×2100 | 700×2100 | ||||||
| Shank hole (Dia × Depth) |
mm | 3-Φ60×60 | 3-Φ60×70 | 3-Φ60×75 | 3-Φ60×85 | 3-Φ60×95 | 3-Φ60×95 | ||||||
| Between columns | mm | 1200 | 1450 | 1600 | 2020 | 2220 | 2220 | ||||||
| Main motor power | kW | 11 | 11 | 15 | 18.5 | 22 | 30 | ||||||
| Air cushion Eject force × Stroke × Qty. |
kN × mm | 40×70×2 | 40×70×2 | 60×70×2 | 80×80×2 | 80×80×2 | 100×90×2 | ||||||
| Bolster height | mm | 900 | 935 | 900 | 935 | 950 | 985 | 1000 | 1050 | 1100 | 1155 | 1110 | 1155 |
| Outline dimension (F · B × L · R × H) |
mm | 2160×1750×3100 | 2250×2040×3260 | 2550×2220×3580 | 2660×2560×3980 | 2880×2860×4320 | 2880×3040×4320 | ||||||
