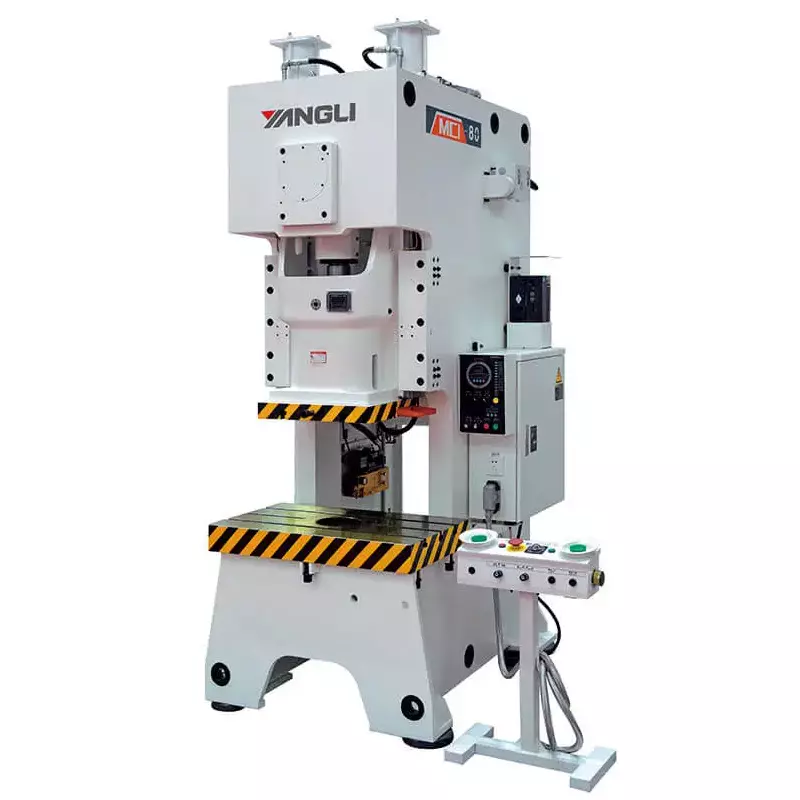

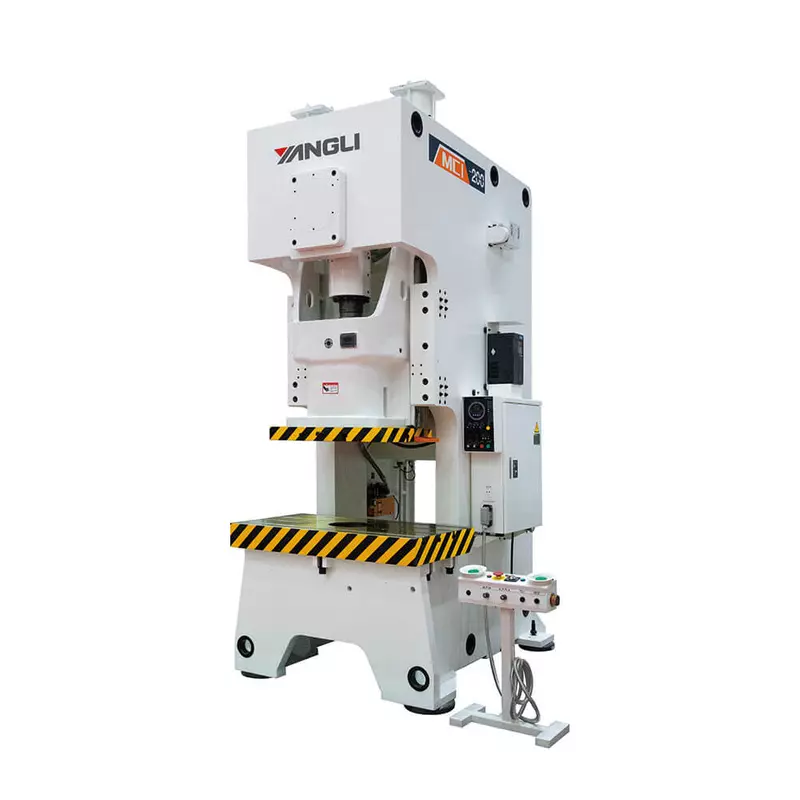

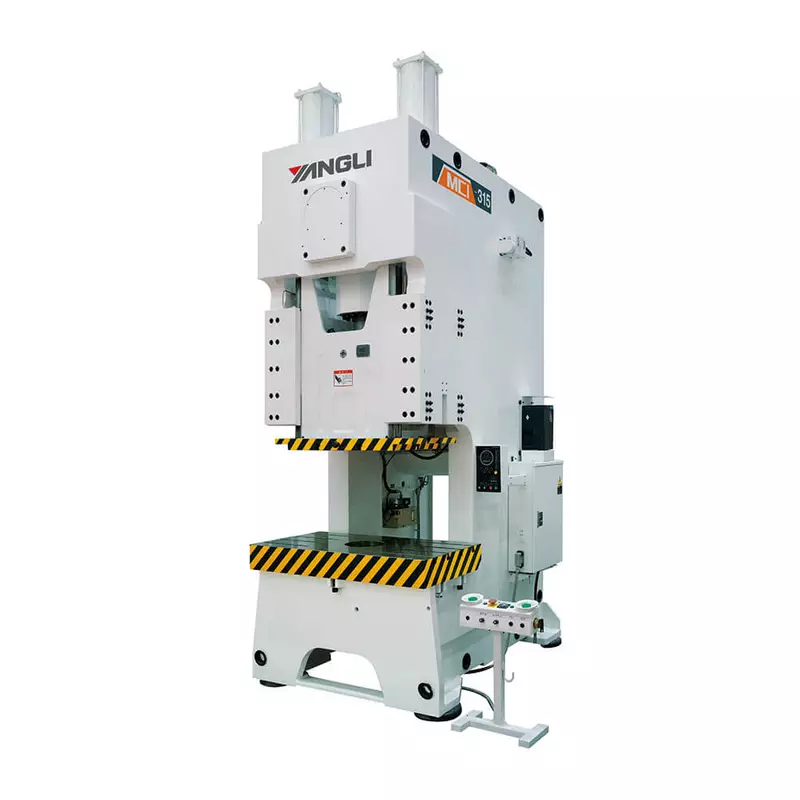

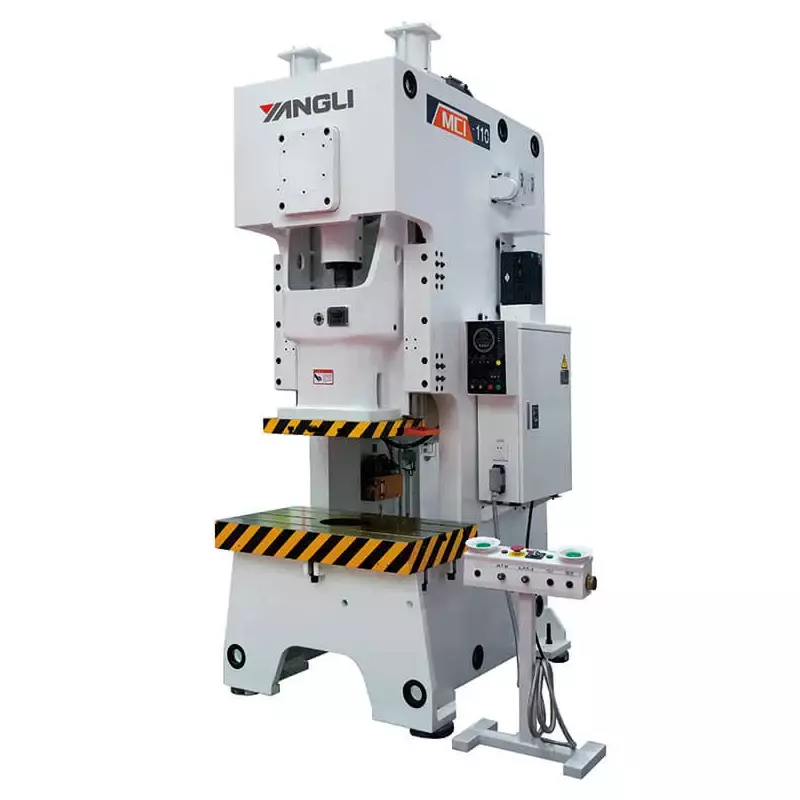

MC1 Series Open Front Single Point Press With High Accuracy High Performance

MC1-125\MC1-200

Product Features

▸JIS Class I accuracy.
▸Welded steel frame with high rigidity.
▸Fixed SPM.
▸Combined dry friction clutch.
▸Six-face rectangular extended guide; MC1-315 and MC1-400 use an eight-face extended guide.
▸Hydraulic overload protector.
▸MC1-16: manual slide adjustment with scale display.
▸MC1-25: manual slide adjustment with digital display.
▸MC1-45 and larger models: electric slide adjustment with digital display.
▸Lifting balance cylinder, except for MC1-16.
▸Imported dual solenoid valve.
▸Electric forced grease lubrication.
▸Manual oil lubrication for the balance cylinder.
▸Integrated control panel with electric cam.
▸PLC control from an internationally recognized brand.
▸Contactors and push buttons from internationally recognized brands.
▸One set of blowing device included.
▸Optional: wet clutch, air cushion, light curtain, inverter motor, slide knockout device, bolster LR housing and automation device.

Specifications

Specification Unit MC1-16 MC1-25 MC1-45 MC1-63 MC1-80 MC1-110 MC1-125 MC1-160 MC1-200 MC1-250 MC1-315 MC1-400
Nominal force kN 160 250 450 630 800 1100 1250 1600 2000 2500 3150 4000
Nominal stroke mm 2 3.2 4 4 5 6 6 6 6 8 8 10
Slide stroke mm 60 80 100 130 150 180 180 200 200 250 250 250
SPM – Fixed min⁻¹ 135 100 80 70 60 50 50 45 40 30 30 25
SPM – Variable
(Optional)		 min⁻¹ 120–150 80–120 40–90 35–80 50–70 30–60 30–60 25–50 25–50 20–40 25–40 20–30
Max die height mm 220 250 270 300 340 350 350 400 450 500 550 550
Die height adjustment mm 30 50 60 80 80 90 90 110 110 120 120 120
Between slide center and frame mm 160 210 230 300 300 350 350 380 410 420 460 490
Bolster area
(F · B × L · R)		 mm 310×700 400×700 440×810 580×900 580×1000 680×1150 680×1150 740×1300 800×1400 820×1550 880×1650 940×1800
Bolster thickness mm 65 80 100 110 120 140 140 150 160 180 200 200
Bed opening
(F · B × L · R)		 mm 200×300 260×190 300×220 370×240 370×240 370×300 370×300 420×340 420×340 370×570 400×580 440×580
Slide area
(F · B × L · R)		 mm 250×320 340×360 340×410 420×500 450×560 500×650 540×680 580×770 650×850 680×950 700×1000 720×1200
Shank hole
(Dia × Depth)		 mm Φ40×60 Φ40×60 Φ40×75 Φ50×75 Φ50×75 Φ60×75 Φ60×75 Φ65×90 Φ65×90 Φ70×90 Φ70×90 Φ70×90
Between columns mm 460 440 530 580 630 700 720 790 820 960 1020 1020
Main motor power kW 3 3 5.5 5.5 7.5 11 11 15 18.5 22 30 37
Air cushion
(Option)
Eject force × Stroke		 kN×mm / / 30×70 40×70 40×70 60×70 60×70 100×90 100×90 160×90 160×90 160×90
Outline dimension
(F · B × L · R × H)		 mm 1500×1040×2000 1260×1050×2290 1380×1150×2530 1600×1250×2870 1610×1320×3060 1800×1370×3270 1800×1410×3270 2130×1520×3600 2190×1610×3850 2380×1730×4530 2505×1880×4745 2820×1920×4895
