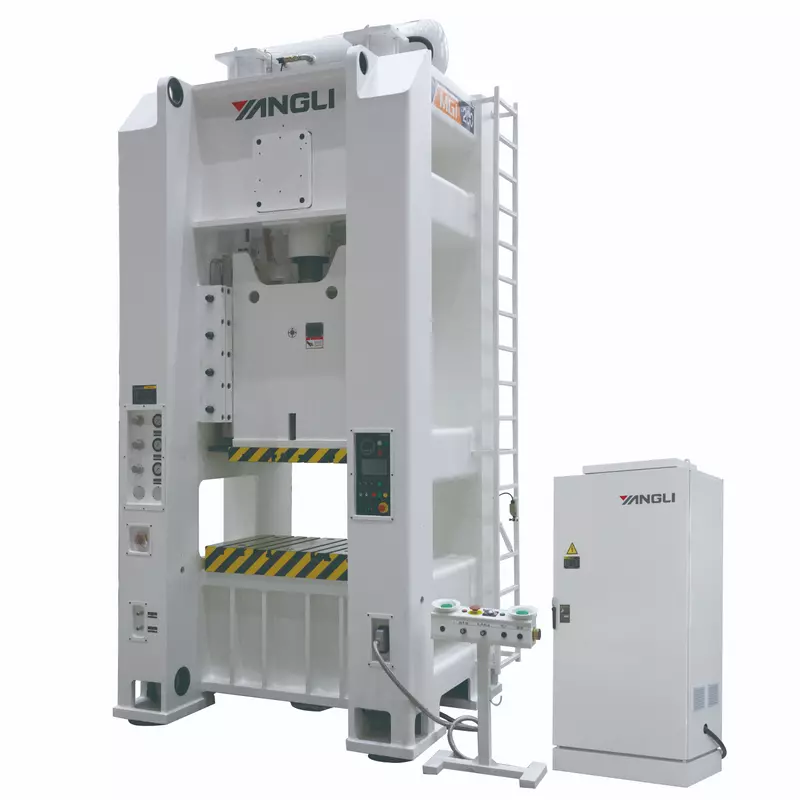

MG1 Series Gantry Type Single Point Press With High Accuracy High Performance

Product Features

▸High precision in accordance with JIS Class I standards.

▸All-steel welded frame construction.

▸Combined dry friction clutch.

▸Eight-face extended guide system.

▸Hydraulic overload protector.

▸Electric die height adjustment with digital display.

▸Lifting balance cylinder.

▸Imported dual solenoid valve.

▸Electric grease lubrication system.

▸Class II models use an electric circulating oil lubrication system.

▸Manual oil lubrication for the balance cylinder.

▸Integrated control panel with electronic cam and touch screen.

▸PLC control from an internationally renowned brand.

▸Contactors and push buttons from internationally renowned brands.

▸One set of blowing device included.

▸Optional: wet clutch, air cushion, light curtain, NC feeder, inverter-driven motor, slide knockout device and safety door.

Specifications

Specification		MG1-110	MG1-125	MG1-160	MG1-200	MG1-250	MG1-315	MG1-400	MG1-500	MG1-630	MG1-800	MG1-1000
Specification		I	I	I	I	I	I	I	I	I	I	I
Nominal force	kN	1100	1250	1600	2000	2500	3150	4000	5000	6300	8000	10000
Nominal stroke	mm	6	6	6	6	8	8	10	10	10	10	10
Slide stroke	mm	180	180	200	200	250	250	250	250	250	250	250
SPM	Fixed	50	50	45	35	30	30	25	25	20	18	15
SPM	Variable (Optional)	30-60	30-60	25-50	20-50	20-40	25-40	25-30	20-30	20-25	15-20	18-22
Max die height	mm	350	350	400	450	500	550	600	650	700	700	800
Die height adjustment	mm	90	90	110	110	120	120	120	120	120	120	120
Bolster area (F·B × L·R)	mm	680×1000	680×1000	740×1050	760×1130	800×1200	850×1250	900×1350	1000×1500	1200×1700	1300×1800	1400×2000
Bolster thickness	mm	140	140	150	160	180	200	200	220	220	240	250
Slide area (F·B × L·R)	mm	600×800	600×800	650×800	650×850	700×900	750×950	800×1050	900×1200	1100×1450	1200×1600	1300×1800
Shank hole (Dia × Depth)	mm	Φ60×80	Φ60×80	Φ65×90	Φ65×90	Φ70×90	Φ70×90	Φ80×90	Φ80×90	Φ90×100	Φ90×130	Φ90×130
Between columns	mm	1100	1100	1150	1200	1320	1370	1550	1700	1900	2000	2200
Side opening (F·B × H)	mm	700×400	700×400	760×450	800×500	820×550	880×600	920×650	1020×650	1100×700	1200×700	1300×800
Main motor power	kW	11	11	15	18.5	18.5	30	37	45	75	75	110
Air cushion (Option) Eject force × Stroke	kN × mm	60×70	60×70	100×90	100×90	160×90	160×90	160×90	160×90	160×90	160×90	160×90
