Product Features
▸Deep-throat design provides a larger working area.
▸Horizontal crankshaft structure.
▸Rigid clutch with rotating-key mechanism.
▸Manual die-height adjustment with scale display.
▸Type A presses are equipped with an emergency stop function to stop slide overrun between 0° and 135°; light curtain is optional.
Specifications
| Specification | Unit | J21S-6.3 | J21S-10 | J21S-16 | J21S-25A | J21S-40A | J21S-63A | J21S-80A | JD21S-100A | JD21S-125A |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal force | kN | 63 | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 |
| Nominal stroke | mm | 2 | 2 | 2 | 2.5 | 4 | 4 | 5 | 6 | 6 |
| Slide stroke | mm | 35 | 60 | 70 | 80 | 120 | 120 | 130 | 140 | 140 |
| SPM | min⁻¹ | 170 | 145 | 125 | 60 | 55 | 50 | 45 | 38 | 38 |
| Max die height | mm | 110 | 130 | 170 | 180 | 220 | 270 | 290 | 320 | 320 |
| Die height adjustment | mm | 30 | 35 | 45 | 70 | 80 | 80 | 100 | 100 | 100 |
| Between slide center and frame | mm | 700 | 700 | 700 | 700 | 710 | 800 | 800 | 760 | 760 |
| Bolster area (F · B × L · R) |
mm | 200×310 | 240×360 | 320×480 | 400×600 | 480×710 | 480×710 | 580×860 | 710×1100 | 720×1200 |
| Bolster opening (Upper dia × Depth × Lower dia) |
mm | Φ60 | Φ120×20×Φ100 | Φ100 | Φ120 | Φ220×25×Φ180 | Φ200×45×Φ180 | Φ200×45×Φ180 | Φ260×50×Φ220 | Φ260×50×Φ220 |
| Bolster thickness | mm | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 120 |
| Bed opening (Dia / F · B × L · R) |
mm | Φ100 | Φ120 | Φ150 | Φ200 | Φ250 | 200×250 | 220×260 | 260×290 | 260×290 |
| Slide area (F · B × L · R) |
mm | 120×140 | 150×170 | 180×200 | 210×250 | 270×320 | 280×320 | 280×380 | 420×560 | 420×560 |
| Shank hole (Dia × Depth) |
mm | Φ30×55 | Φ30×55 | Φ40×60 | Φ40×70 | Φ50×70 | Φ50×80 | Φ60×75 | Φ60×80 | Φ60×80 |
| Between columns | mm | 162 | 182 | 220 | 350 | 390 | 450 | 450 | 630 | 620 |
| Main motor power | kW | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 |
| Outline dimension (F · B × L · R × H) |
mm | 1545×620×1570 | 1670×680×1860 | 1680×845×2025 | 1790×1030×2070 | 1965×1150×2300 | 2220×1350×2600 | 2220×1380×2650 | 2530×1555×2990 | 2550×1610×2990 |
PRODUCT:

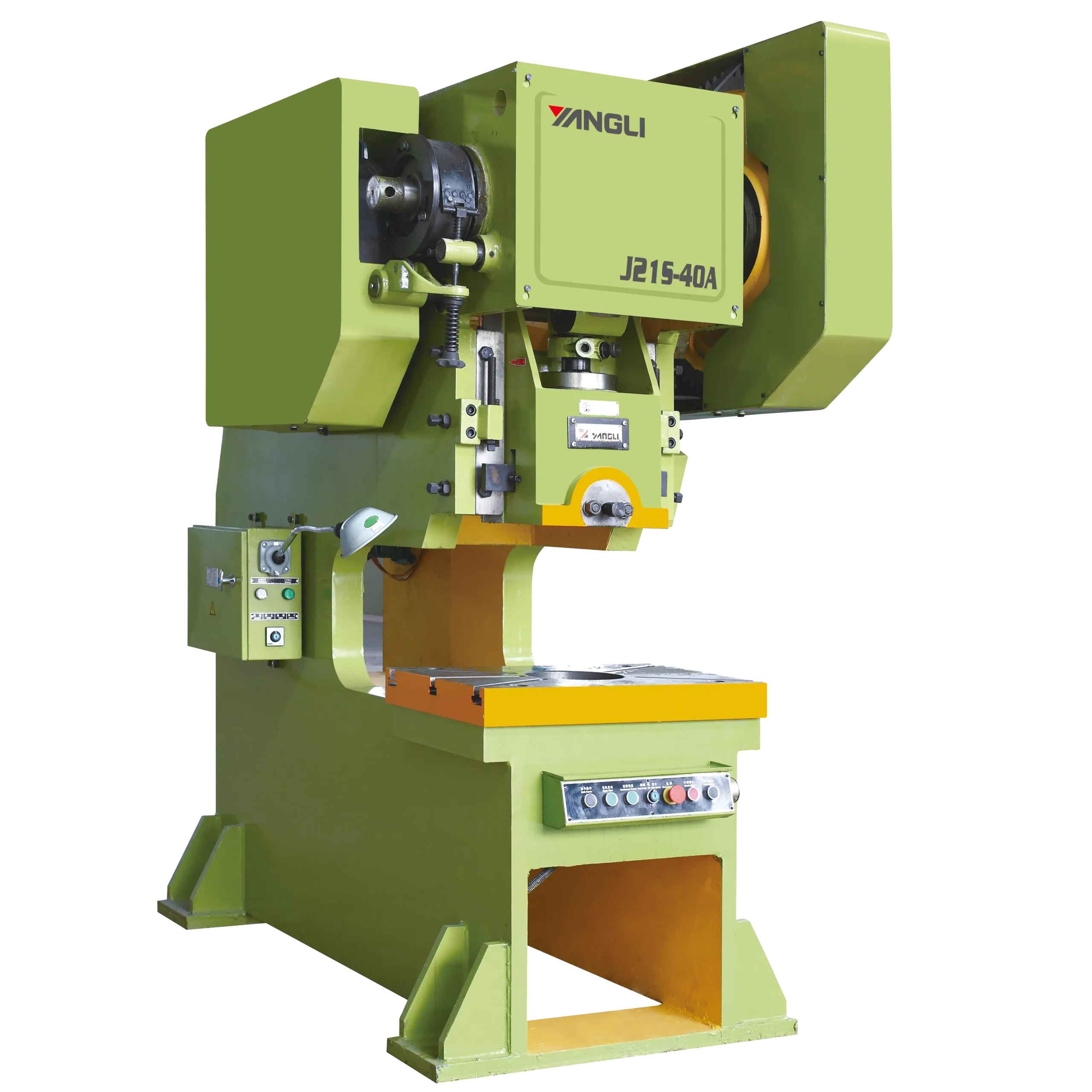

J21S Series General Deep Throat Press
