Specification	Unit	JE21-16D	JE21-25D	JE21-40D	JE21-63D	JE21-80D	JE21-100D	JE21-125D
Nominal force	kN	160	250	400	630	800	1000	1250
Nominal stroke	mm	2	2.5	4	4	5	6	6
Slide stroke	mm	0-70	0-80	20-120	20-120	10-130	16-140	16-140
SPM	min⁻¹	130	100	70	60	53	40	40
Max die height	mm	170	180	220	290	330	320	320
Die height adjustment	mm	30	70	80	80	100	100	100
Between slide center and frame	mm	170	210	250	300	300	380	380
Bolster area (F · B × L · R)	mm	320×480	400×600	480×710	570×760	580×860	710×1100	720×1200
Bolster opening (Upper dia × Depth × Lower dia)	mm	Φ100	Φ120	Φ220×25	Φ200×45	Φ200×45×Φ180	Φ260×50×Φ220	Φ260×50×Φ220
Bolster thickness	mm	60	70	80	90	100	120	120
Bed opening (Dia × F · B × L · R)	mm	140×140	180×180	220×220	Steel Plate: 220×250 Cast iron: Φ280×220×320	Steel Plate: 220×260 Cast iron: Φ280×220×380	260×290	260×290
Slide area (F · B × L · R)	mm	180×200	210×250	270×320	280×320	280×380	420×560	420×560
Shank hole (Dia × Depth)	mm	Φ40×60	Φ40×70	Φ50×70	Φ50×80	Φ60×75	Φ60×80	Φ60×80
Between columns	mm	250	330	410	Steel Plate: 470 Cast iron: 320	Steel Plate: 450 Cast iron: 410	630	620
Main motor power	kW	2.2	3	4	5.5	7.5	7.5	11
Outline dimension (F · B × L · R × H)	mm	1050×1175×1830	1560×1300×2210	1620×1450×2350	1700×1550×2640	1720×1630×2720	2200×1850×3050	2200×1850×3050

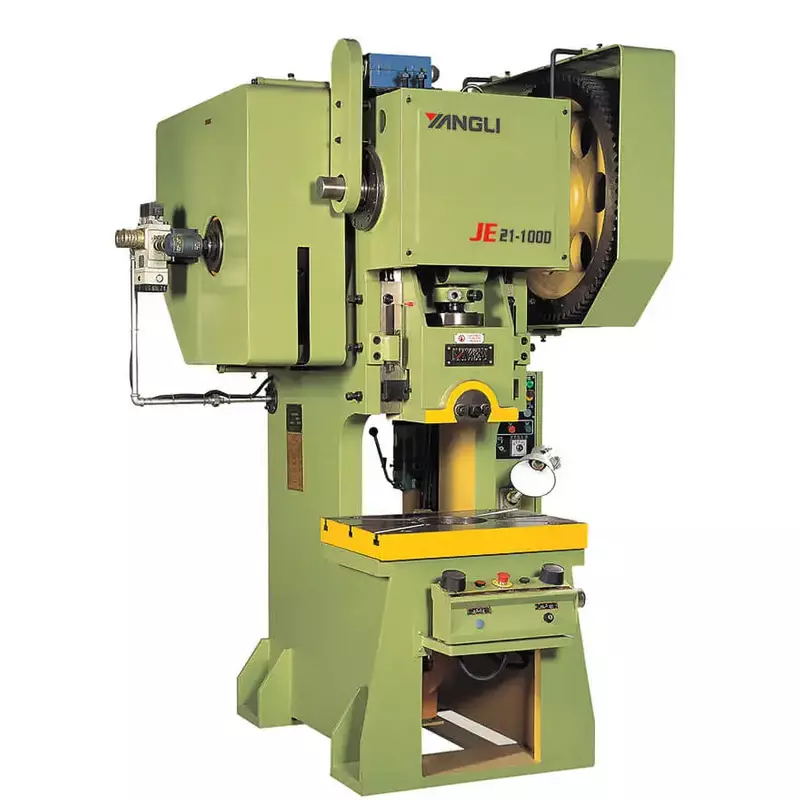

JE21 Series D Type Open Front Fixed Bed Press With Adjustable Stroke
