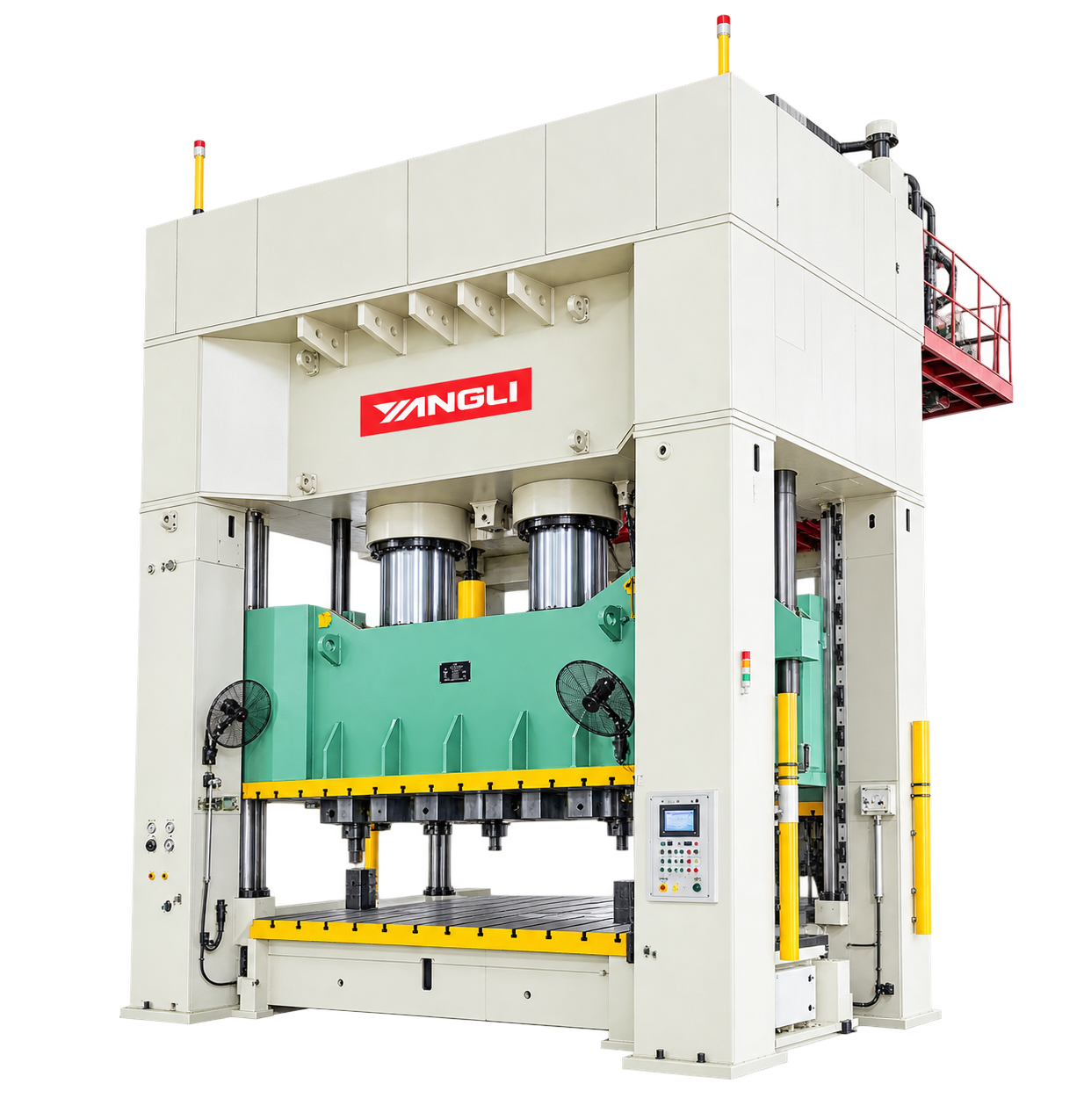

YLZ34C Series Frame Hydraulic Press With Sidewise Moving Bolster

Specification YLZ34C-800 YLZ34C-1000 YLZ34C-1250 YLZ34C-1600 YLZ34C-2000
Nominal force kN 3000+2500×2 3700+3150×2 4500+4000×2 6000+5000×2 8000+6000×2
Return force kN 530×2 735×2 835×2 1100×2 1250×2
Slide stroke mm 1200 1300 1400 1500 1600
Max. opening height mm 1800 1900 2000 2200 2300
Cushion force kN 630×4 630+630×4 800+800×4 1000+1000×4 1250+1250×4
Cushion stroke mm 350 350 400 400 400
Slide speed Idle stroke mm/s About 350 About 350 About 400 About 450 About 450
Pressing mm/s 24—57 25—60 24—59 32—72 30—68
Pressing mm/s 15—36 16—38 16—38 20—45 18—41
Returning mm/s About 250 About 240 About 265 About 305 About 310
Cushion speed Knock out mm/s 75 75 73 90 85
Return mm/s 150 145 130 140 135
Bolster L-R mm 3500 4000 4500 4600 5000
F-B mm 2000 2200 2500 2600 2800
Cushion area L-R mm 2920 3370 3820 3820 4270
F-B mm 1420 1570 1870 1870 2170
Eject hole L-R 150mm×19 gears,
20 trains in total		 150mm×22 gears,
23 trains in total		 150mm×25 gears,
26 trains in total		 150mm×25 gears,
26 trains in total		 150mm×28 gears,
29 trains in total
F-B 150mm×9 gears,
10 rows in total		 150mm×10 gears,
11 rows in total		 150mm×12 gears,
13 rows in total		 150mm×12 gears,
13 rows in total		 150mm×14 gears,
15 rows in total
Hole dia. mm Φ 45 Φ 45 Φ 45 Φ 45 Φ 45
Movable table Exit distance mm 4500 5100 5600 5700 6200
Exit direction Left (or right) side Left (or right) side Left (or right) side Left (or right) side Left (or right) side
Load capacity T 30 35 40 50 60
Overall dimension L-R mm About 9500 About 10600 About 11700 12000 12900
F-B mm About 3900 About 4200 About 4600 4800 5100
Height above floor mm About 7600 About 8100 About 8700 9500 9900
Height below the ground mm About 1800 About 2000 About 4500 4500 5000
Between bolster & floor mm 600 650 700 750 800
Main motor power kW 45×3 45×3+22×2 45×4+22×2 45×7+22 45×8+30

PRODUCT:

YLZ34C Series Frame Hydraulic Press With Sidewise Moving Bolster
